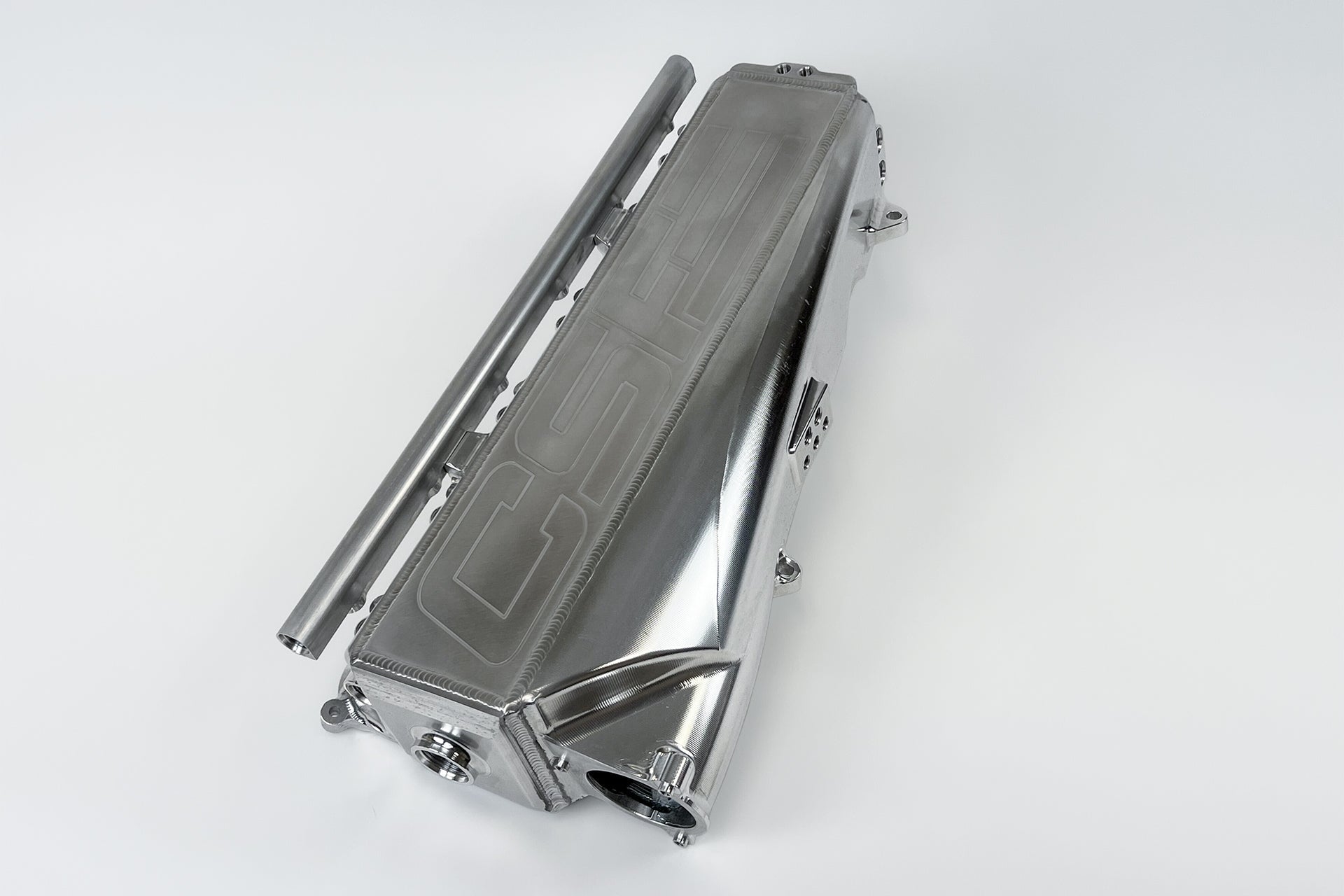

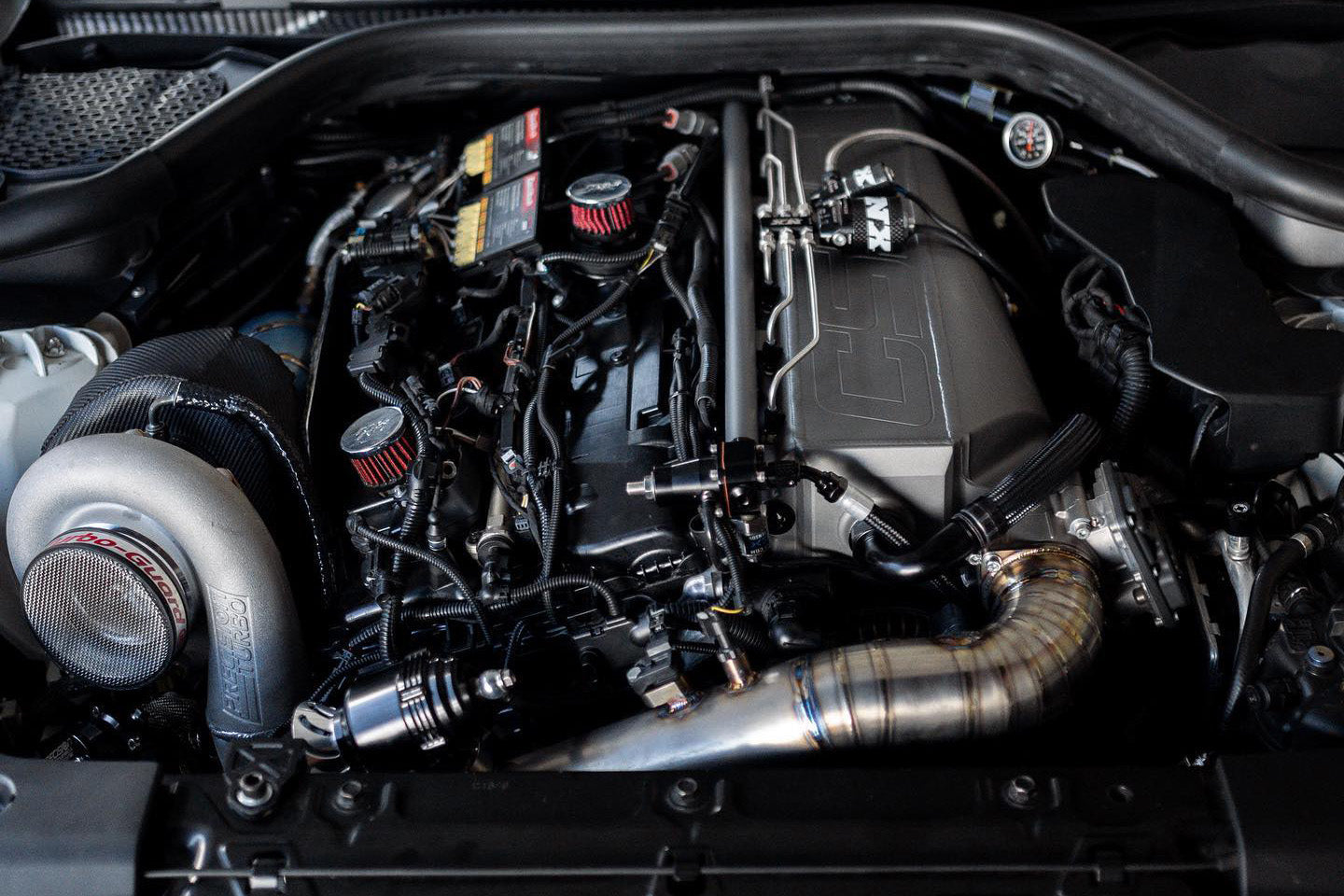

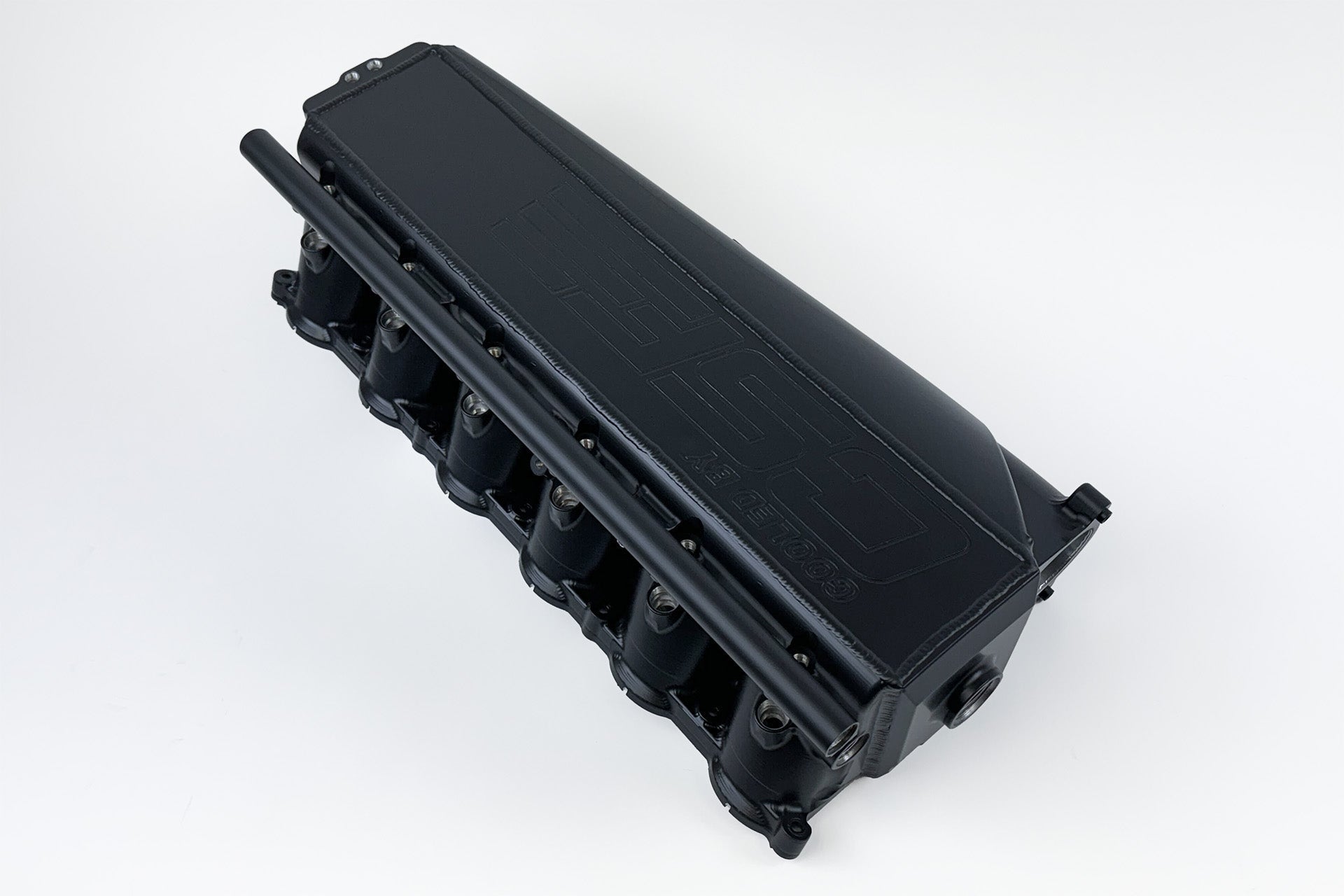

CSF RACE X CHARGE-AIR COOLER MANIFOLD (GEN2 B58)

CSF RACE X CHARGE-AIR COOLER MANIFOLD (GEN2 B58 / MK5 SUPRA)

When CSF released the Gen 2 B58 "Super Manifold" for G-Chassis BMW and Supra, it was a smash hit. It quickly became the go-to manifold for racers and enthusiasts looking to get the most out of their B58. While the Gen 2 B58 "Super Manifold" held up amazingly to countless 1000hp builds, customers still wanted more. CSF is proud to offer the "Race X" Charge-Air-Cooler manifold. Another industry leading design by the trio of CSF, VF Engineering, and Custom Plenum Creations.

The Race X Manifold has many of the features and specs as the Super Manifold in addition to some new race focused features. You can read about the development of the CSF Gen 2 B58 Super Manifold in our original press release.

FEATURES:

• Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) - 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows

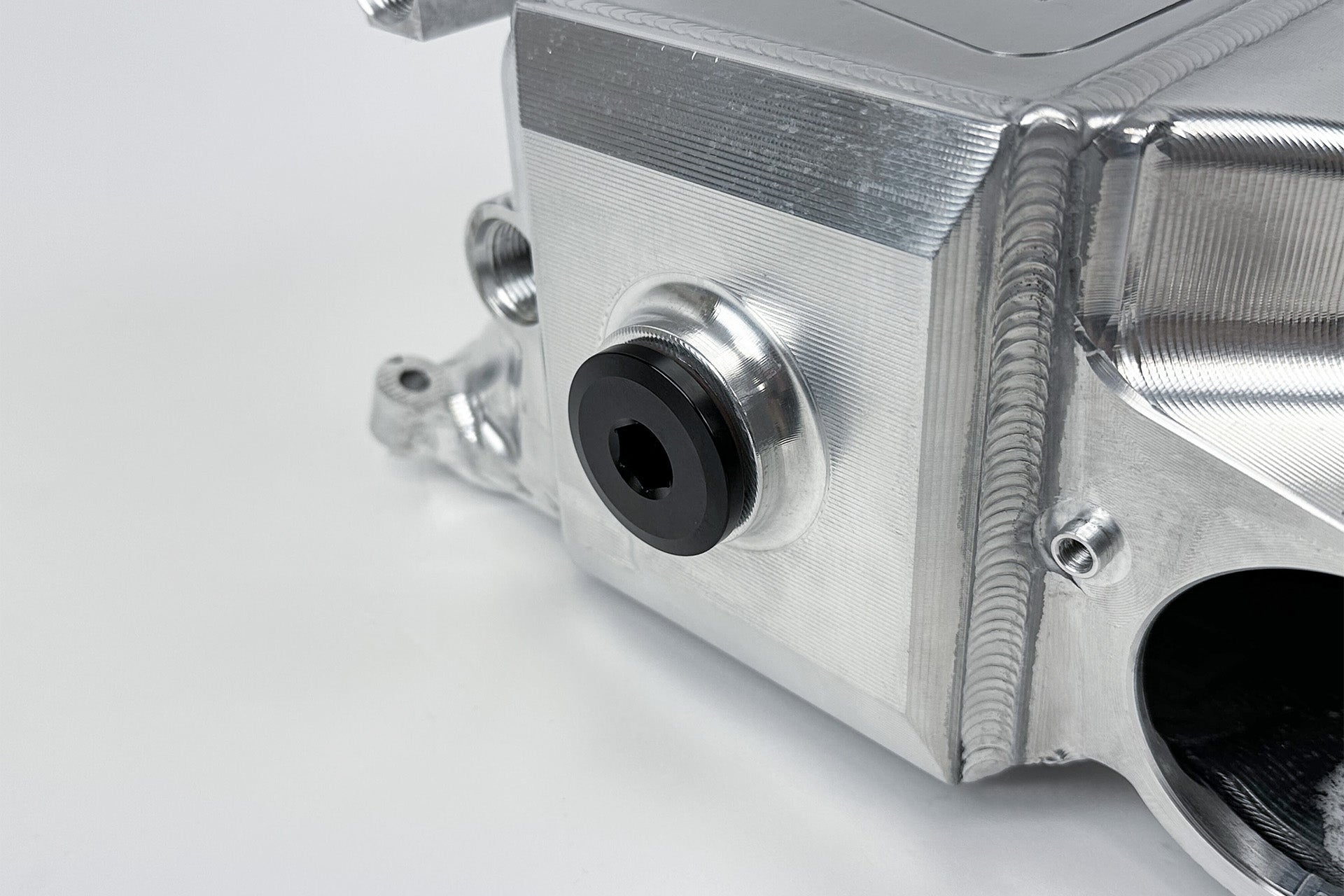

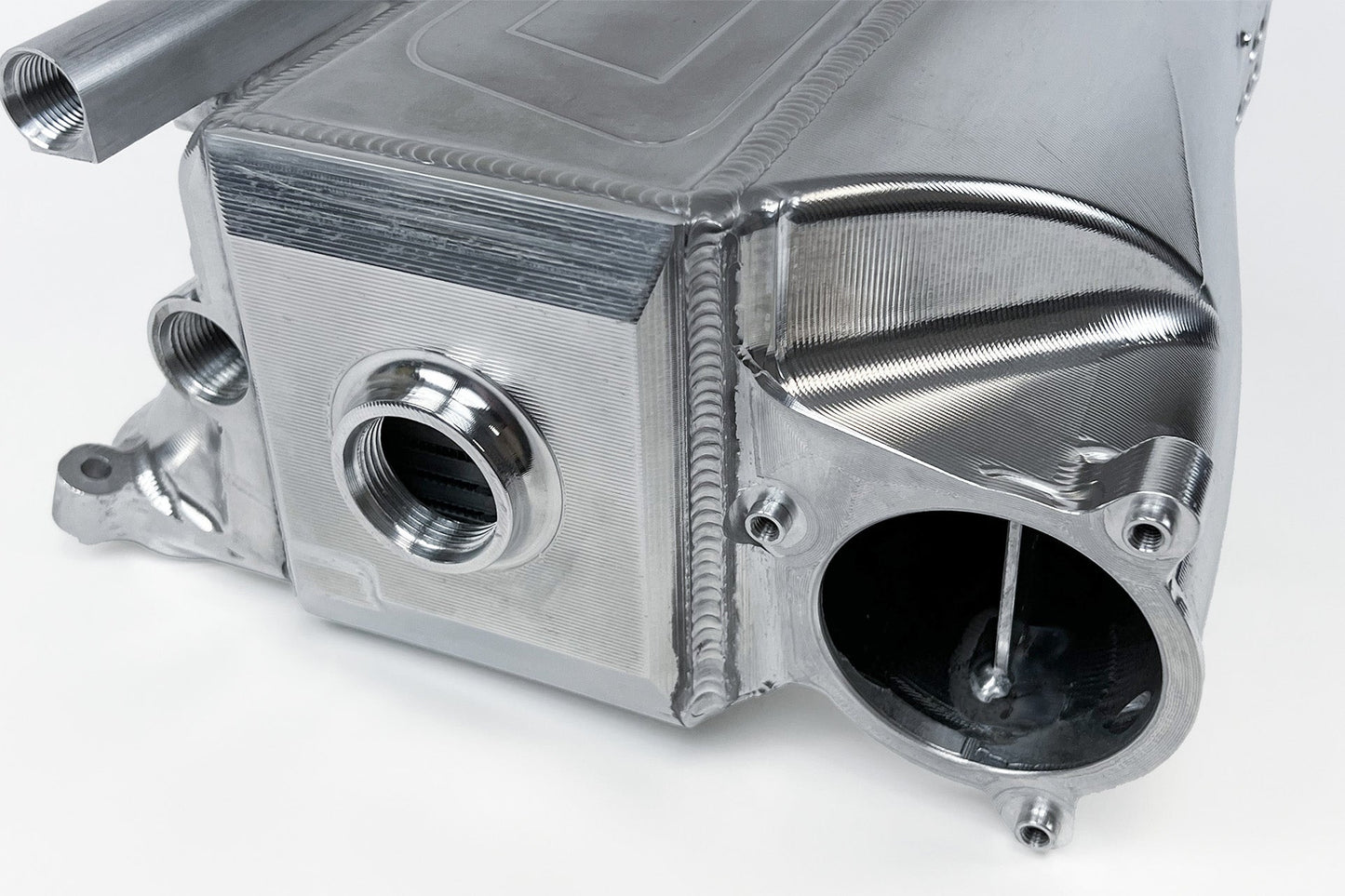

• Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
• Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

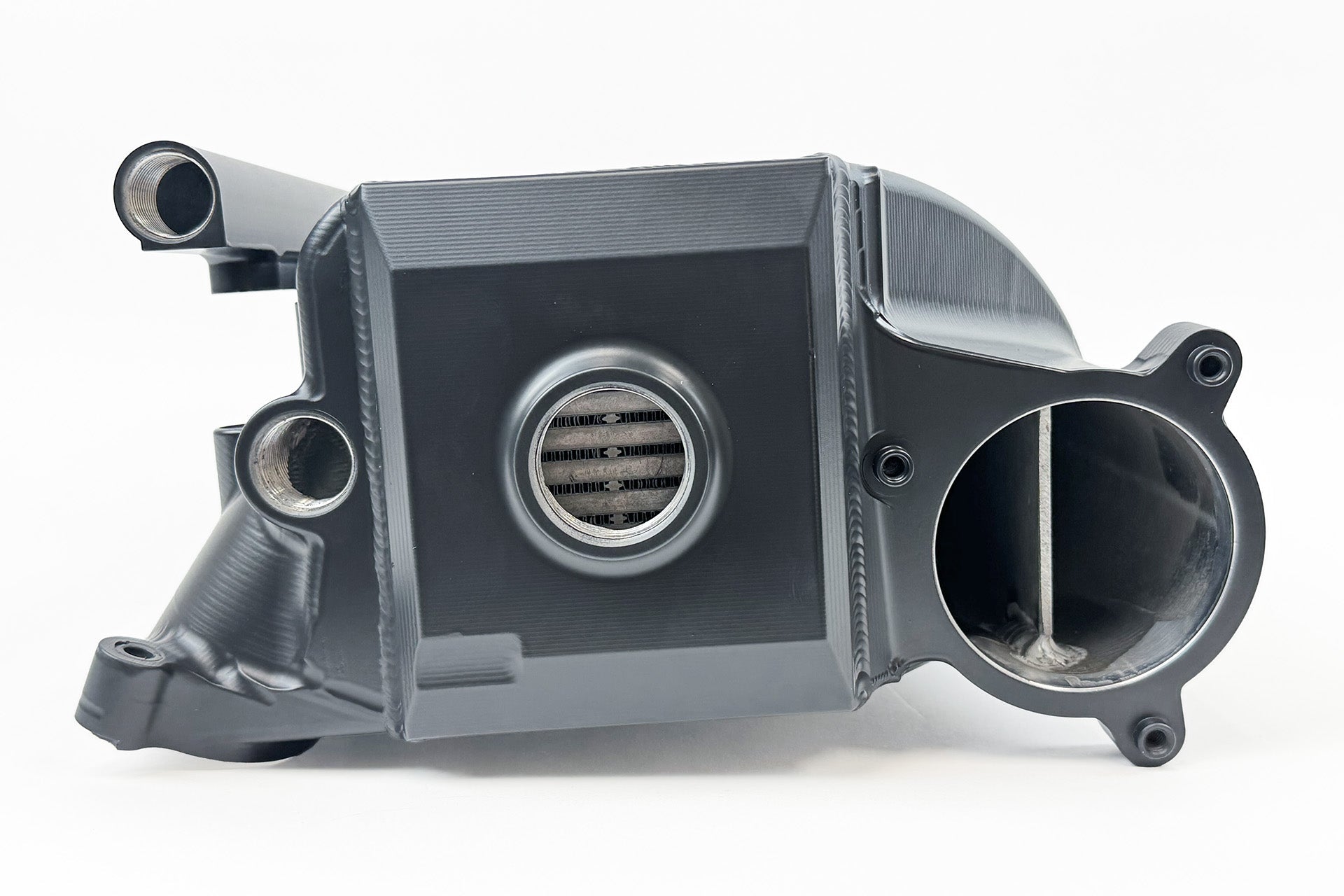

• Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
• Improved slotted mounting holes on throttle body side for easier installation
• Easy Access to Spin-Off Oil Filter for Quick Oil Changes

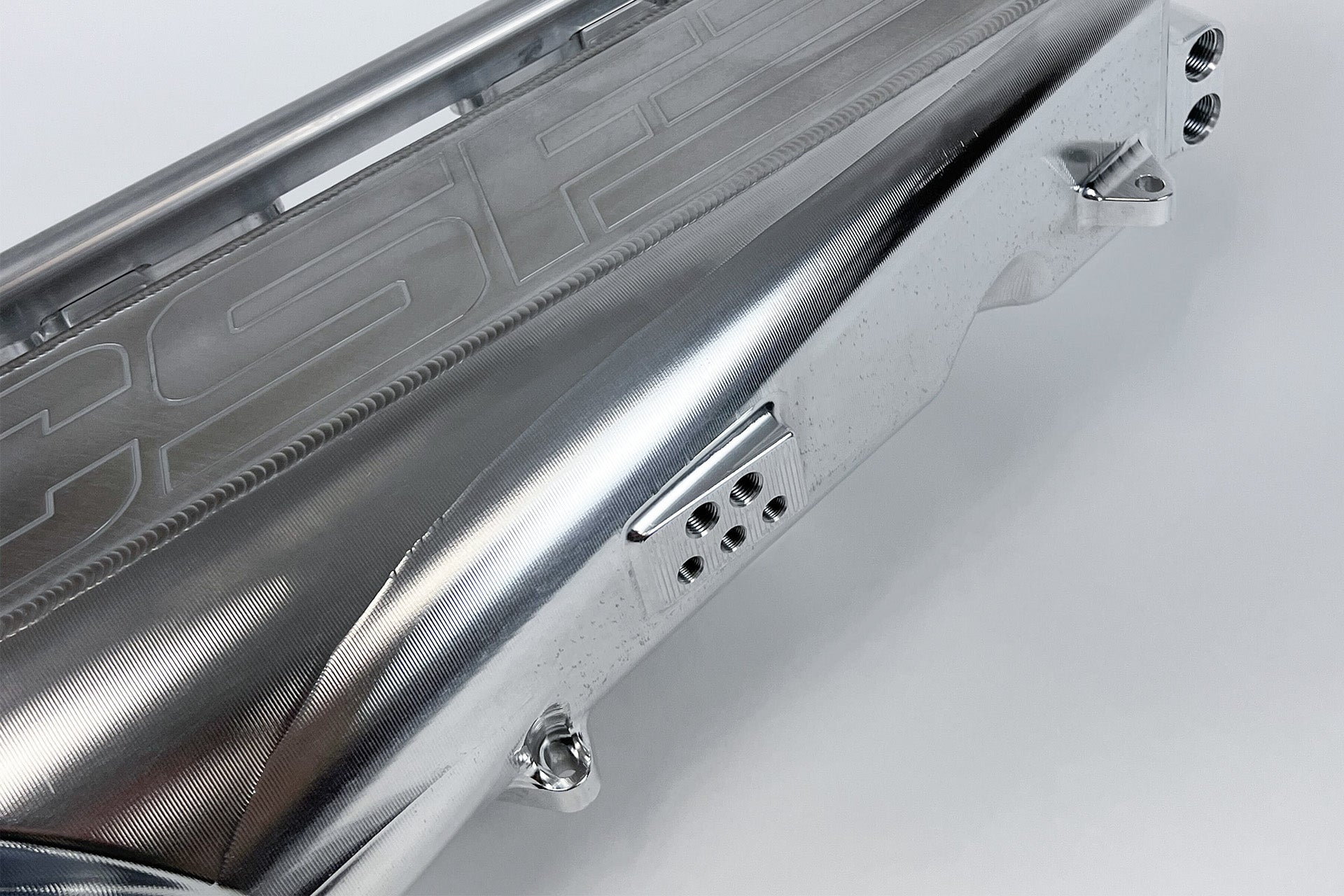

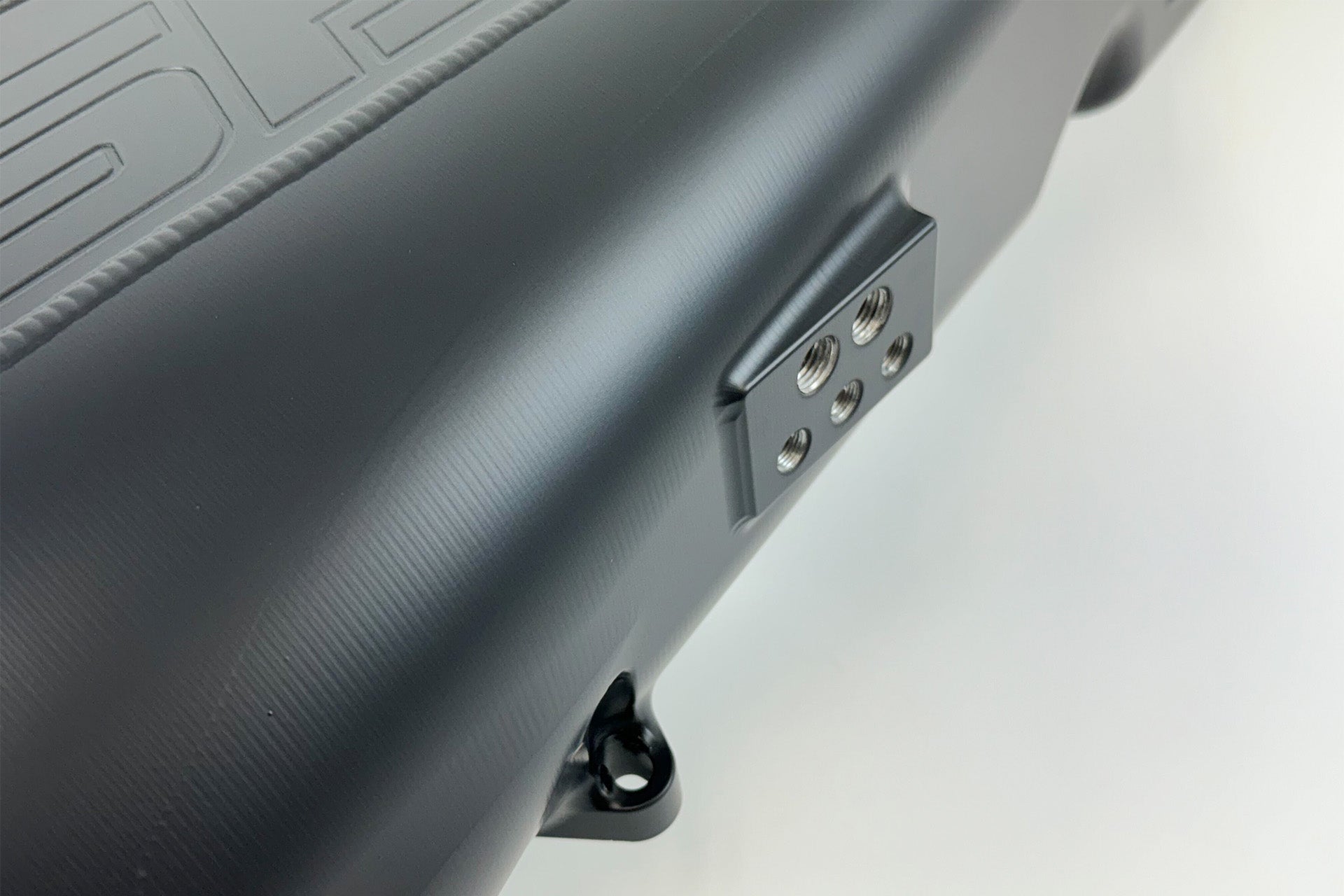

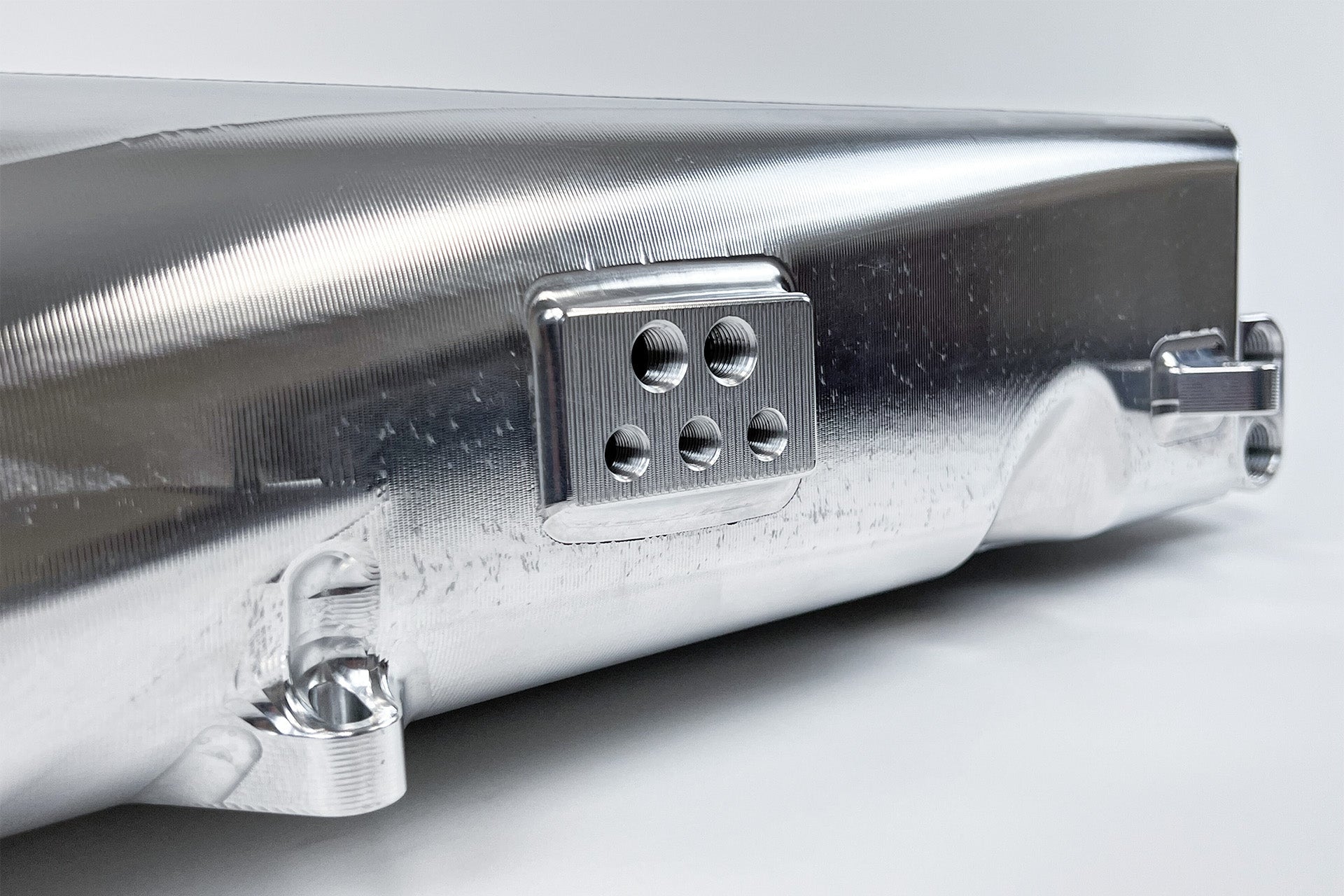

• Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum

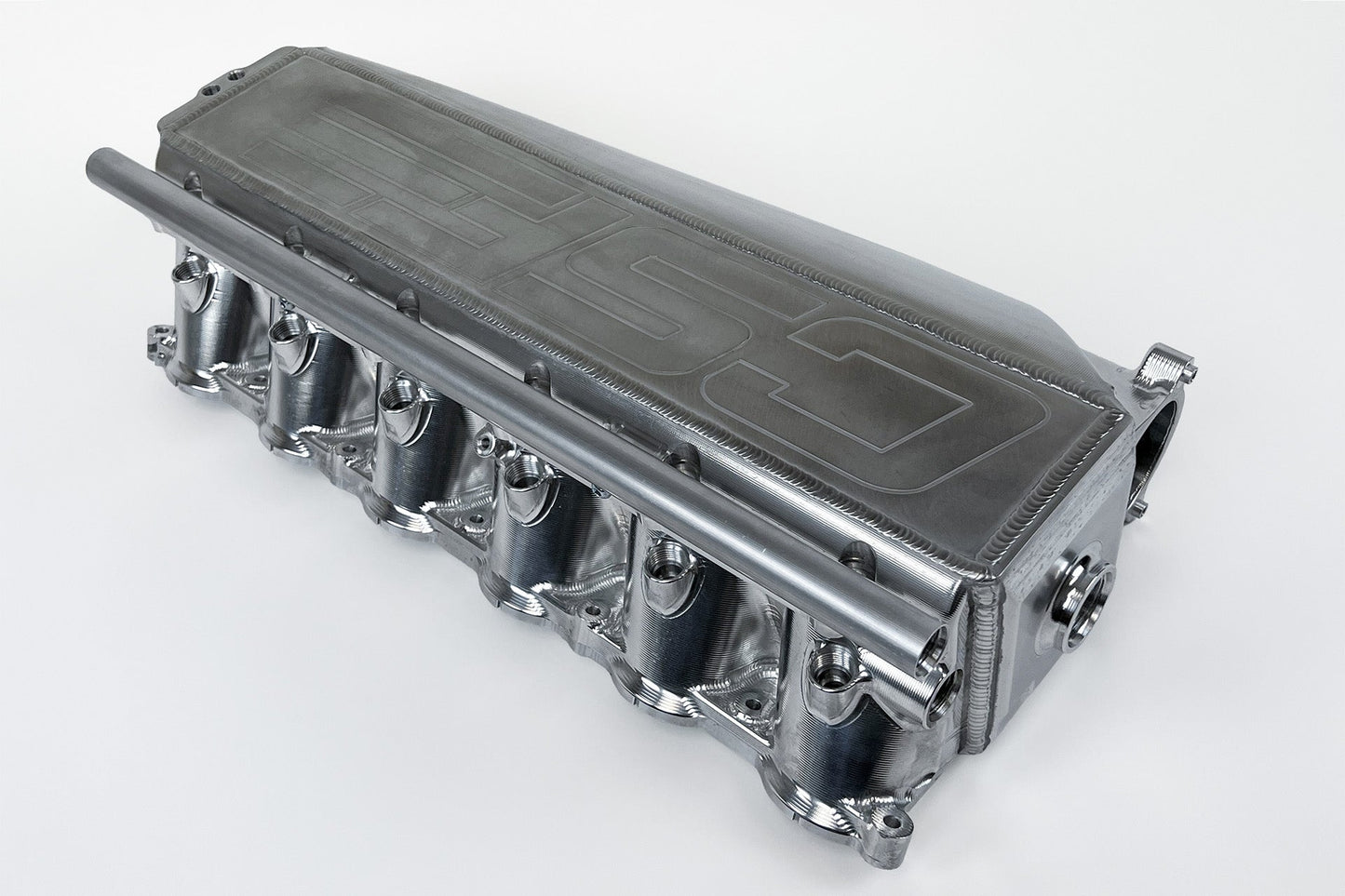

• Included Fuel Rail for Top Feed Port Injection

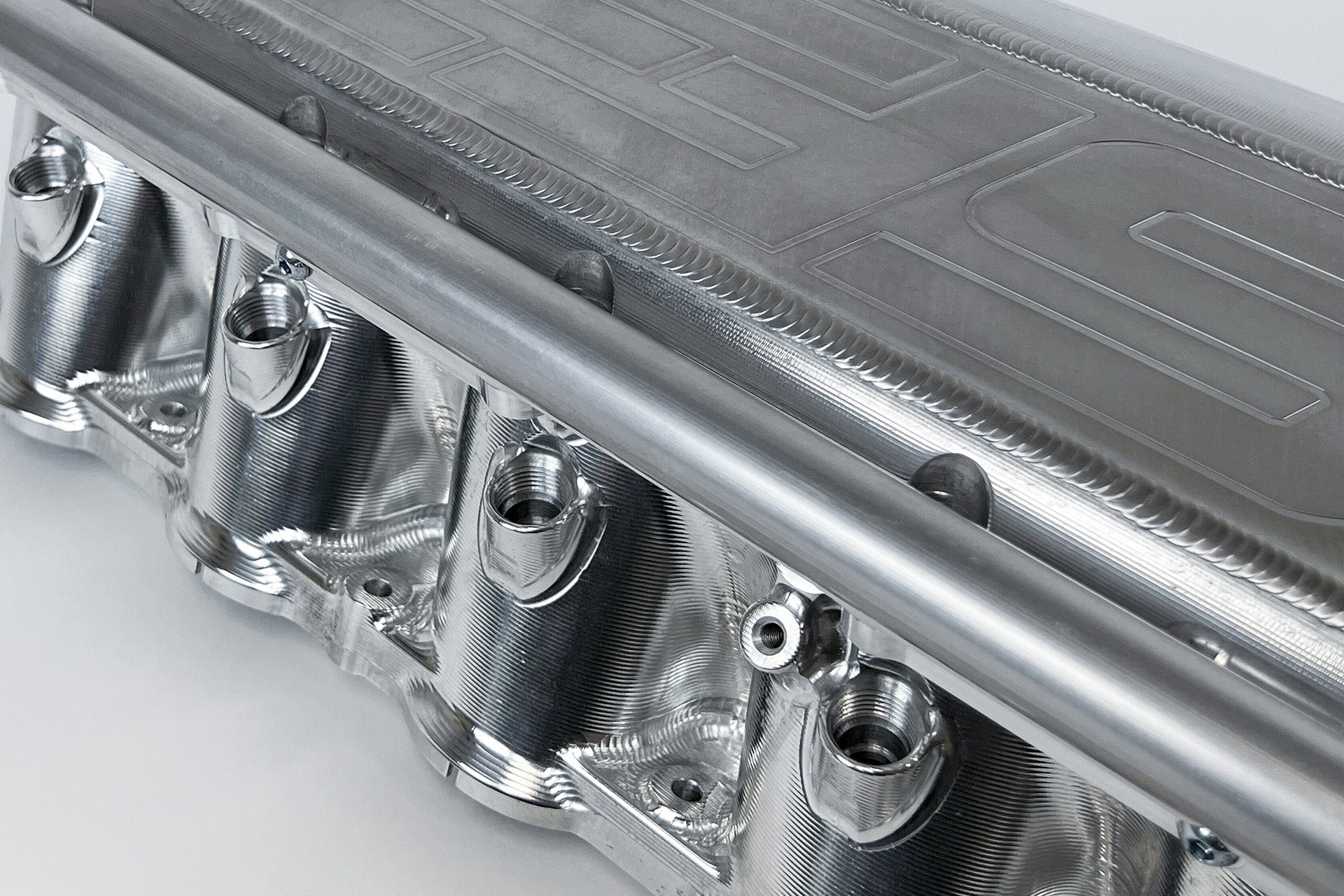

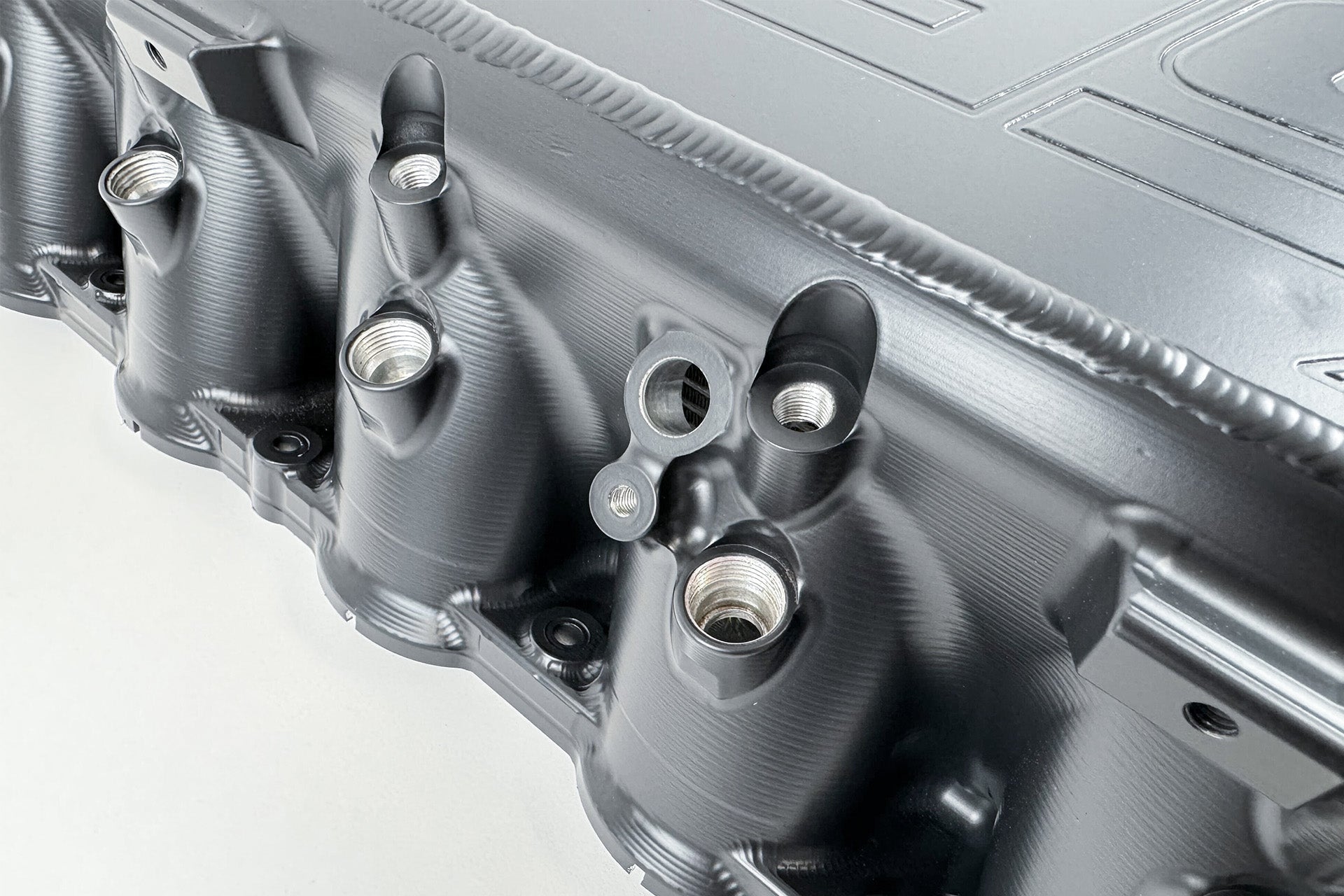

• Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance

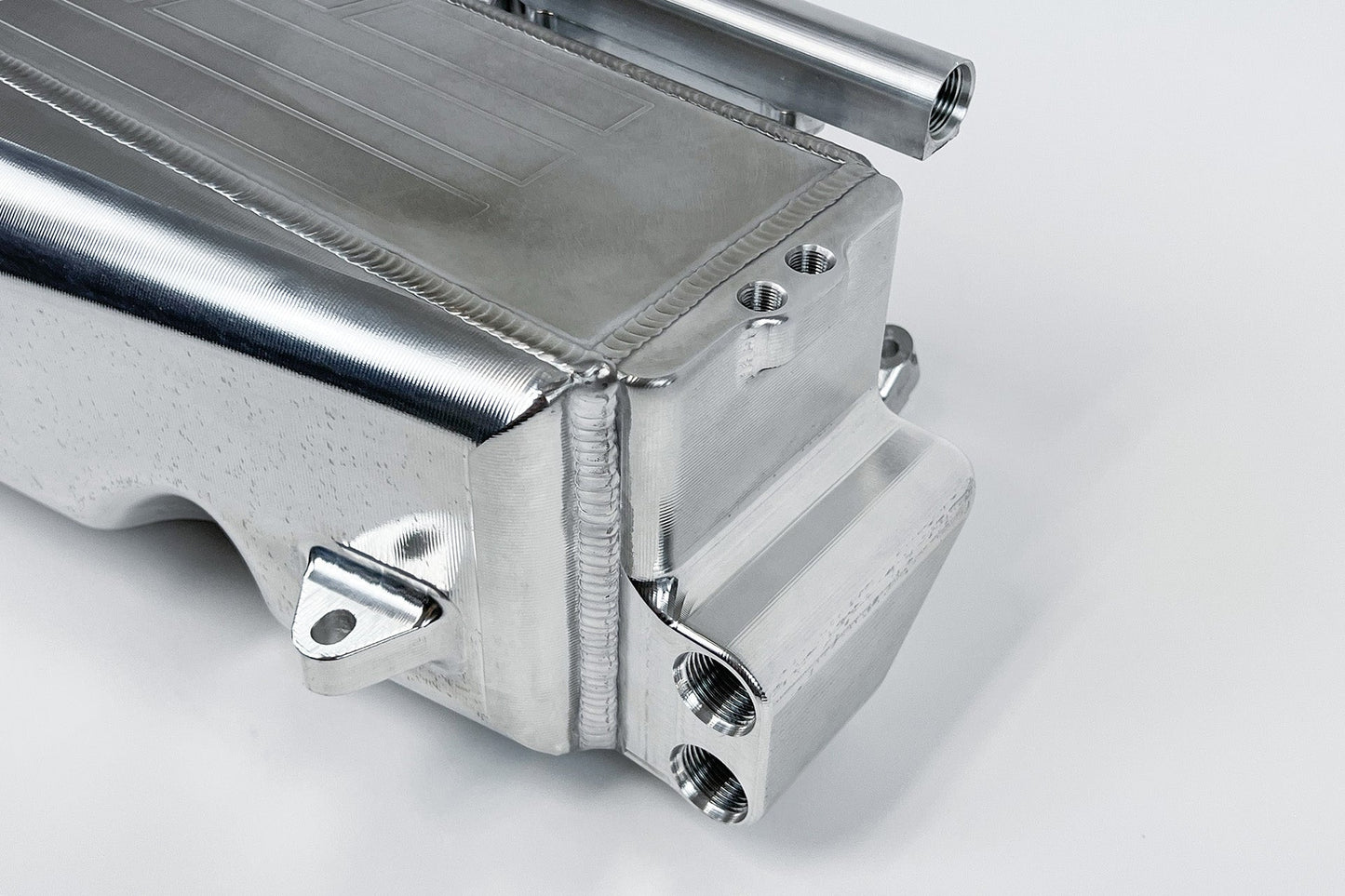

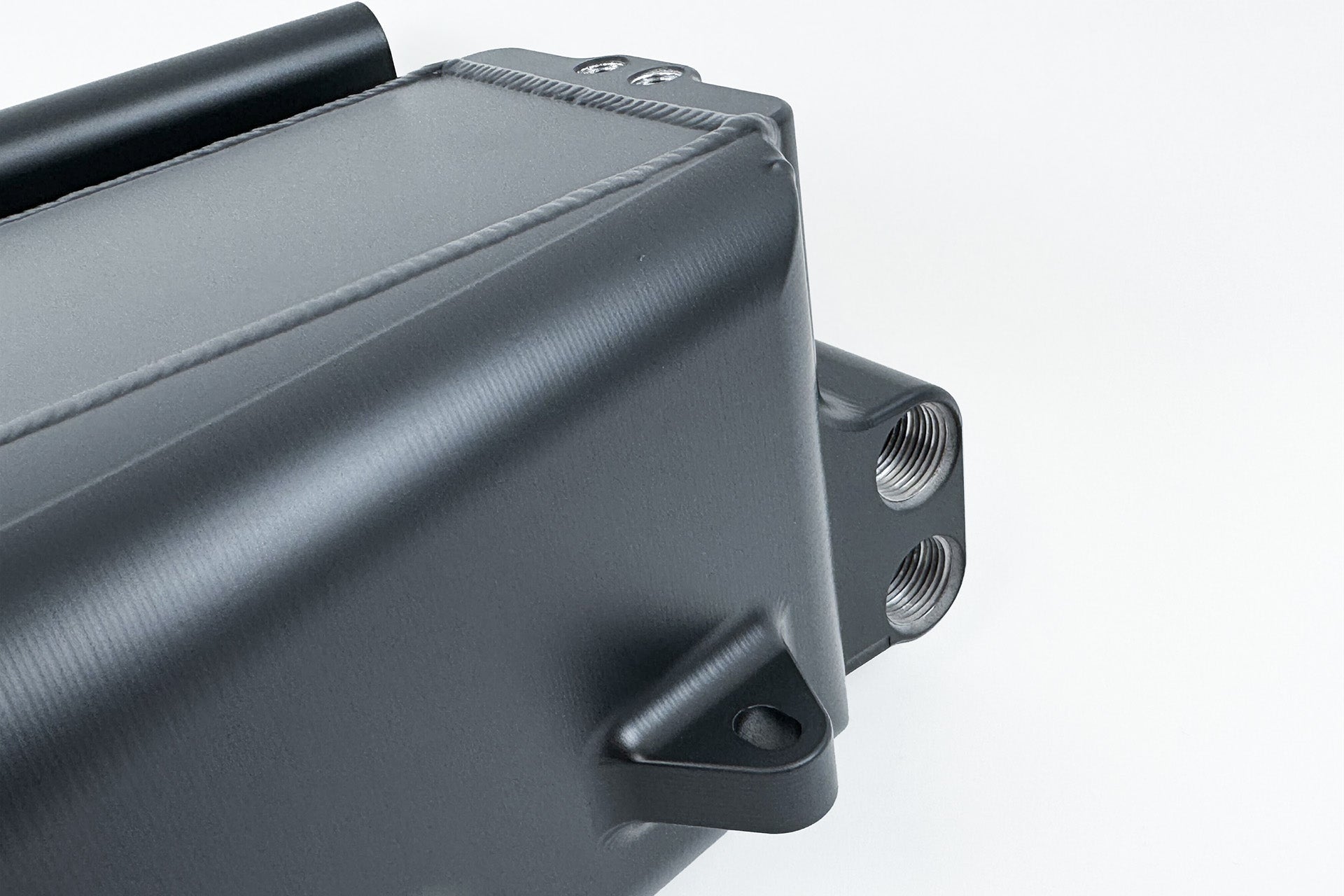

• Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
• Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
• Some modifications to install - this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
• Includes Hardware and Installation Kit with Picture Diagrams and Instructions

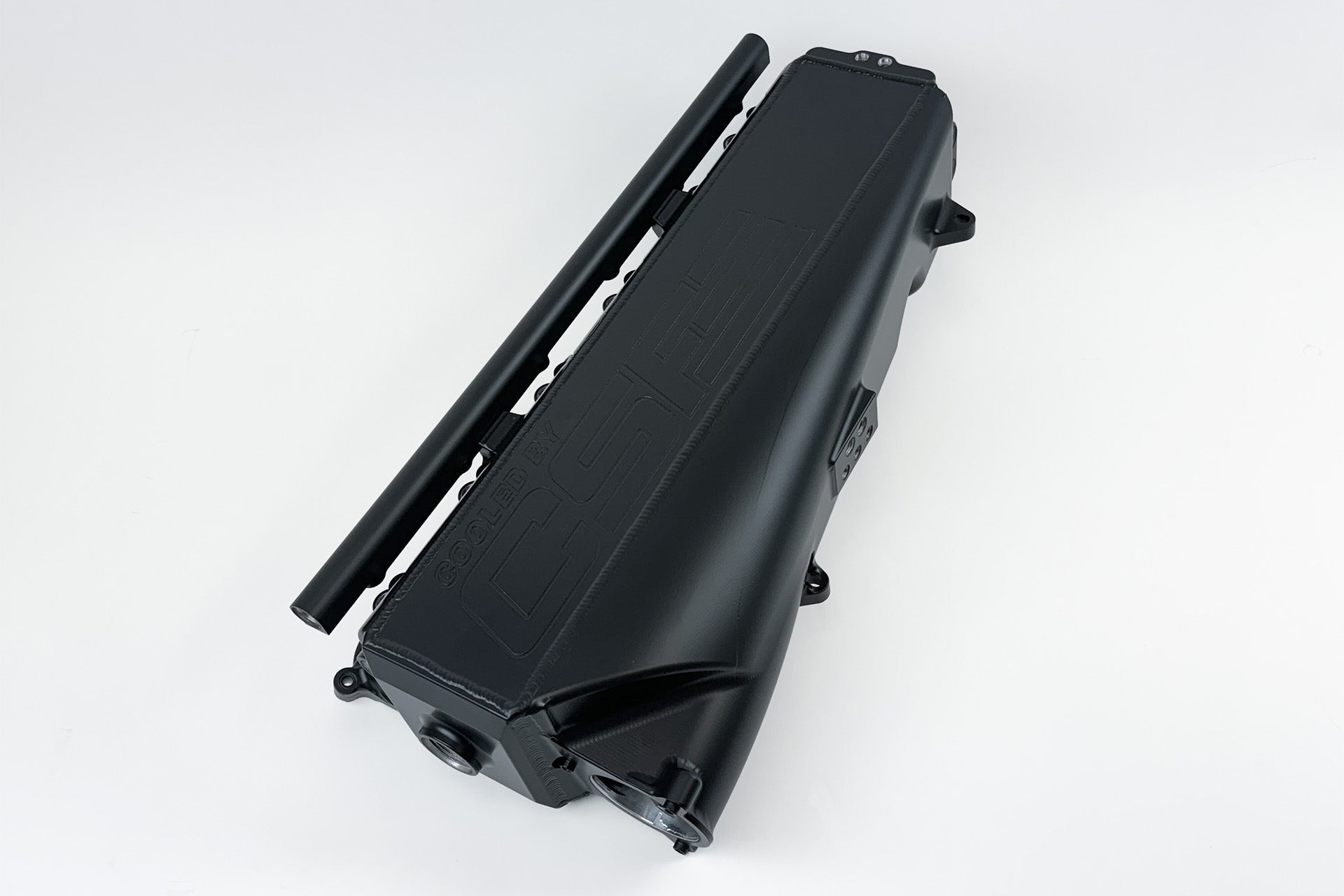

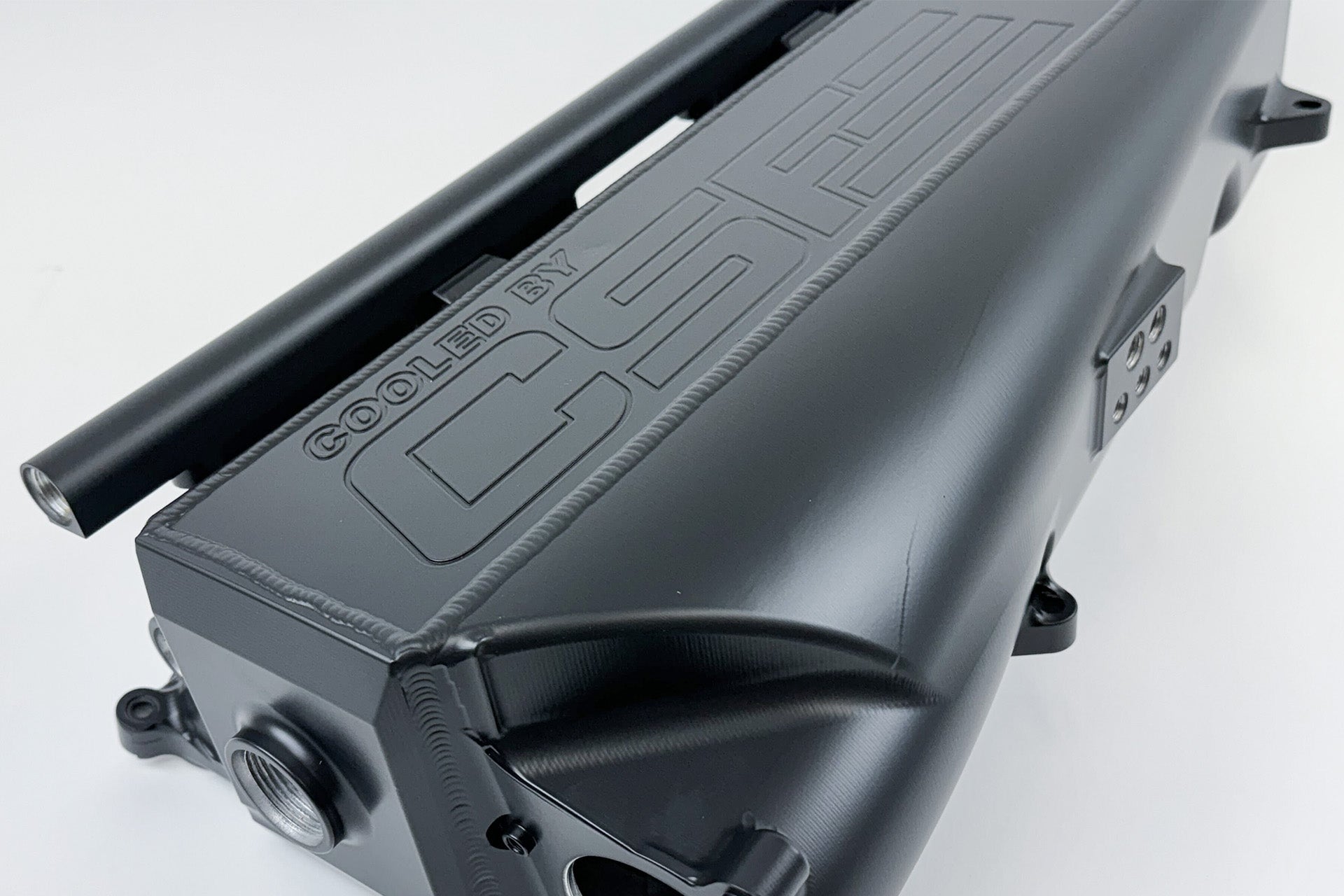

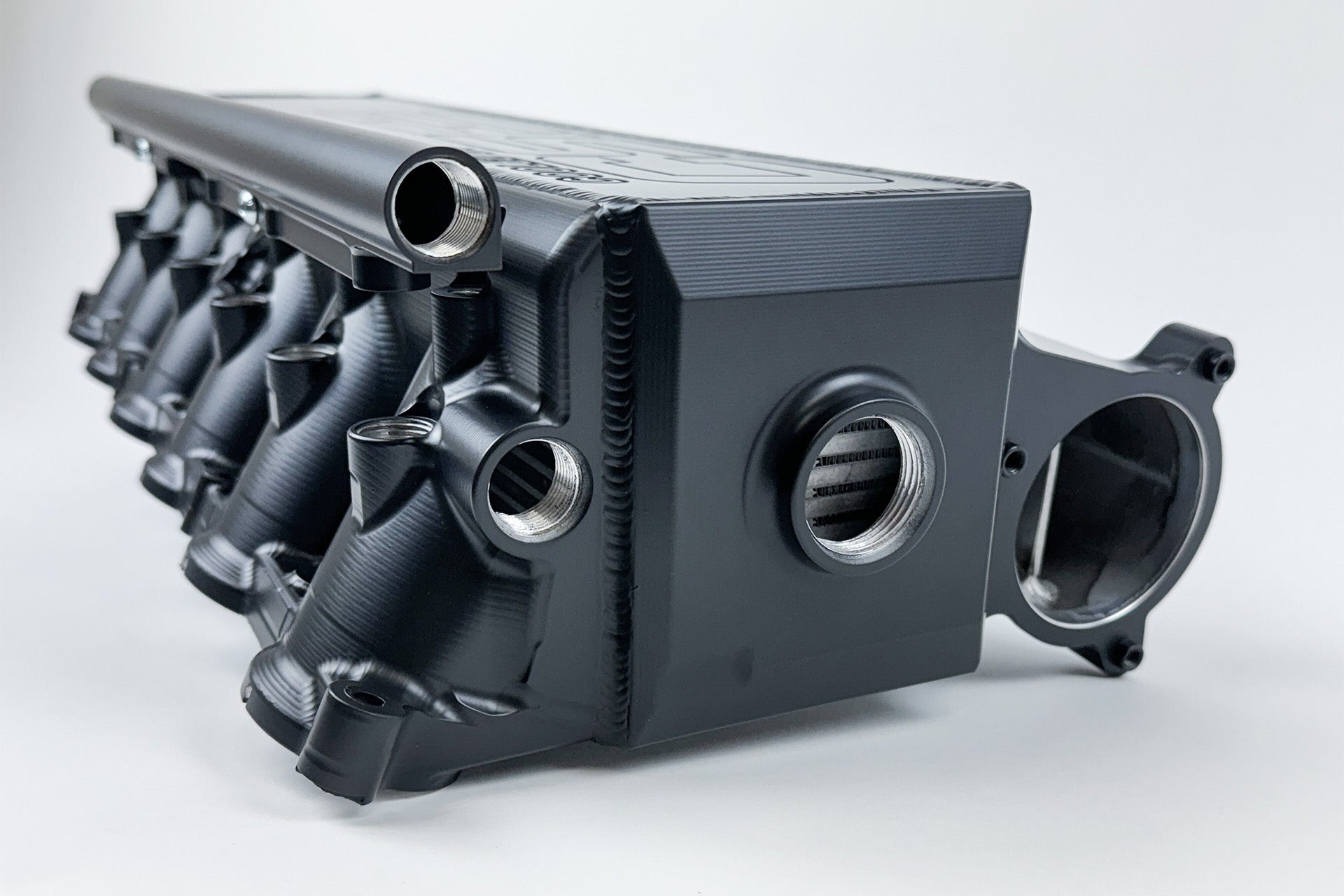

• Comes Finished in Raw Billet Aluminum (Available in Thermal Black Heat Dispersion Cerakote - CSF #8400B or Custom Finishes - CSF #8400C)
• Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
