KLM RACE 6 Port SAVAGE Series Turbo Kit (Mkv Supra)

The KLM Race A90/A91 Supra 6-Port SAVAGE Series Turbo Kit is a complete high-performance turbo system engineered for 2021+ Toyota Supra models equipped with the B58 engine, built specifically for off-road and competition use. Designed to replace the factory turbo setup, the kit features a 6-port twin-scroll turbocharger configuration with dual wastegates for improved exhaust flow, faster spool, and increased power potential. It includes all major components needed for installation—turbocharger, manifold, downpipe, intercooler piping, oil and vacuum lines, hardware, couplers, and fittings—making it a comprehensive solution for enthusiasts looking to push their Supra well beyond stock performance, with optional upgrades available for added durability and heat management.

As of 7/15/24 kits will no longer come with a BOV on the charge pipe and are not required to run this kit properly.

Our SAVAGE kits come with a 4″ DP and turndown tip. Please note if you want to run a full exhaust you will need run a 4″ all the way back or modify your exhaust to fit the new DP.

Optional Add On: (ADD TO CART SEPARATELY)

• KLM CATCH CAN KIT
• KLM TURBO BLANKET
• KLM TURBO GUARD

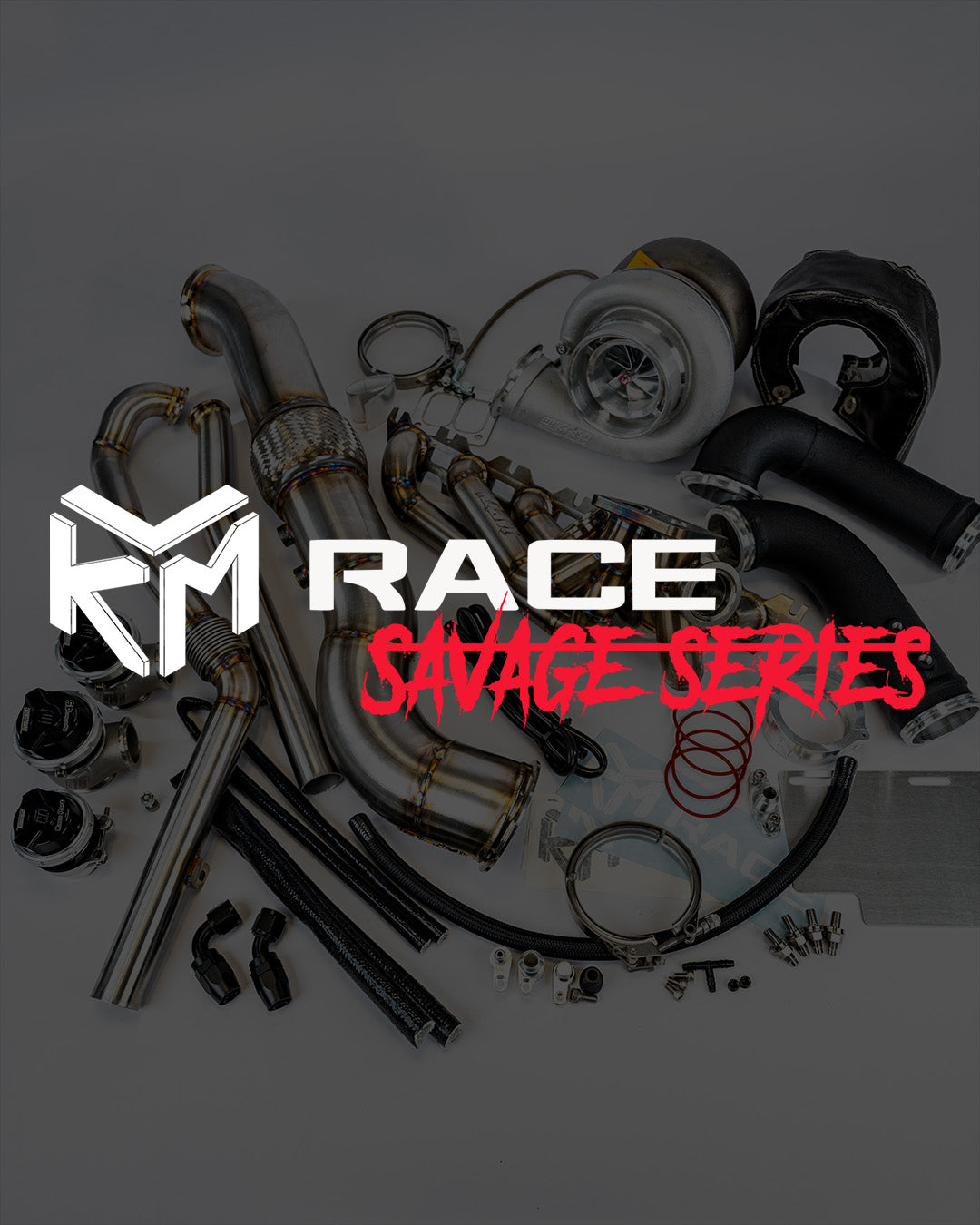

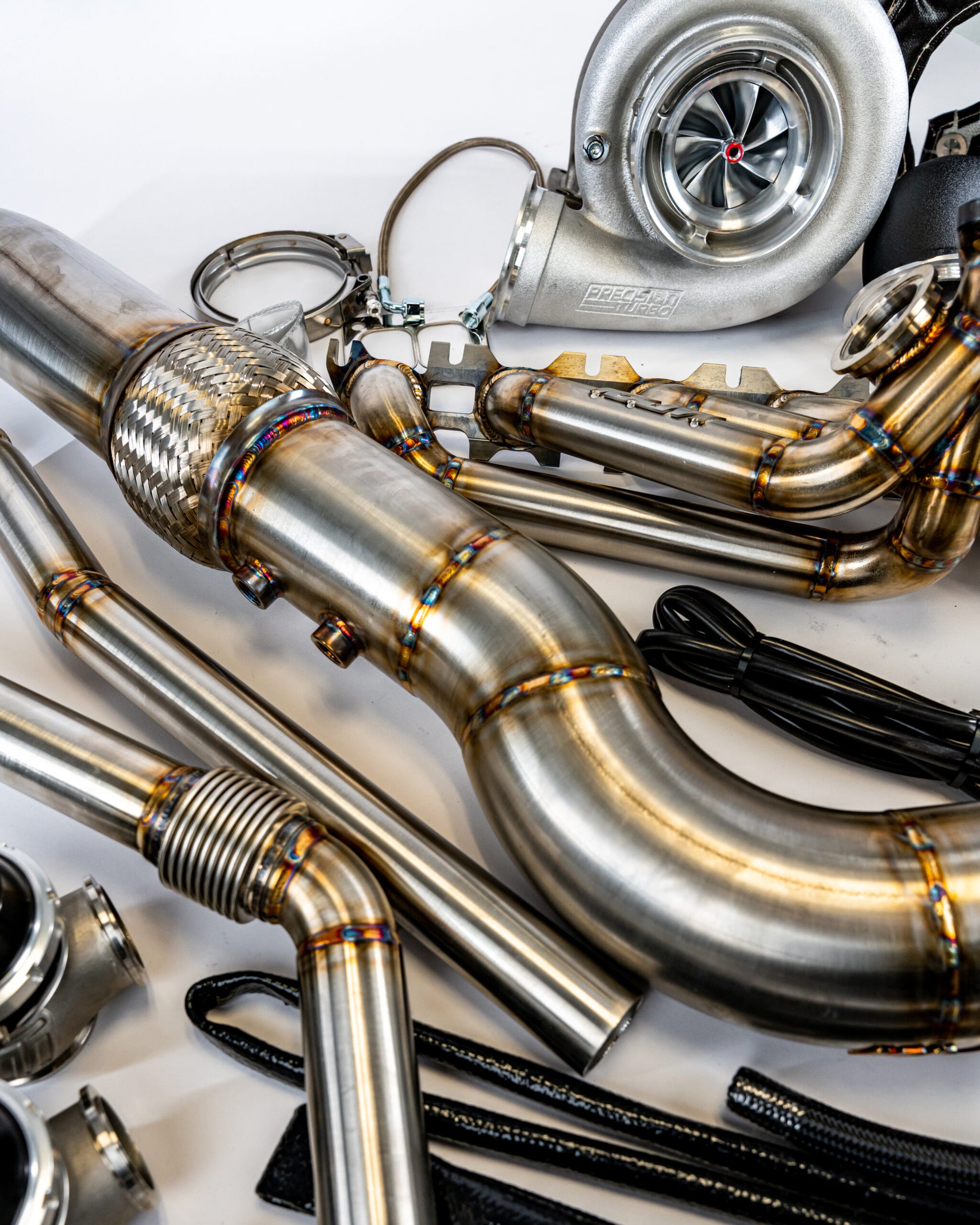

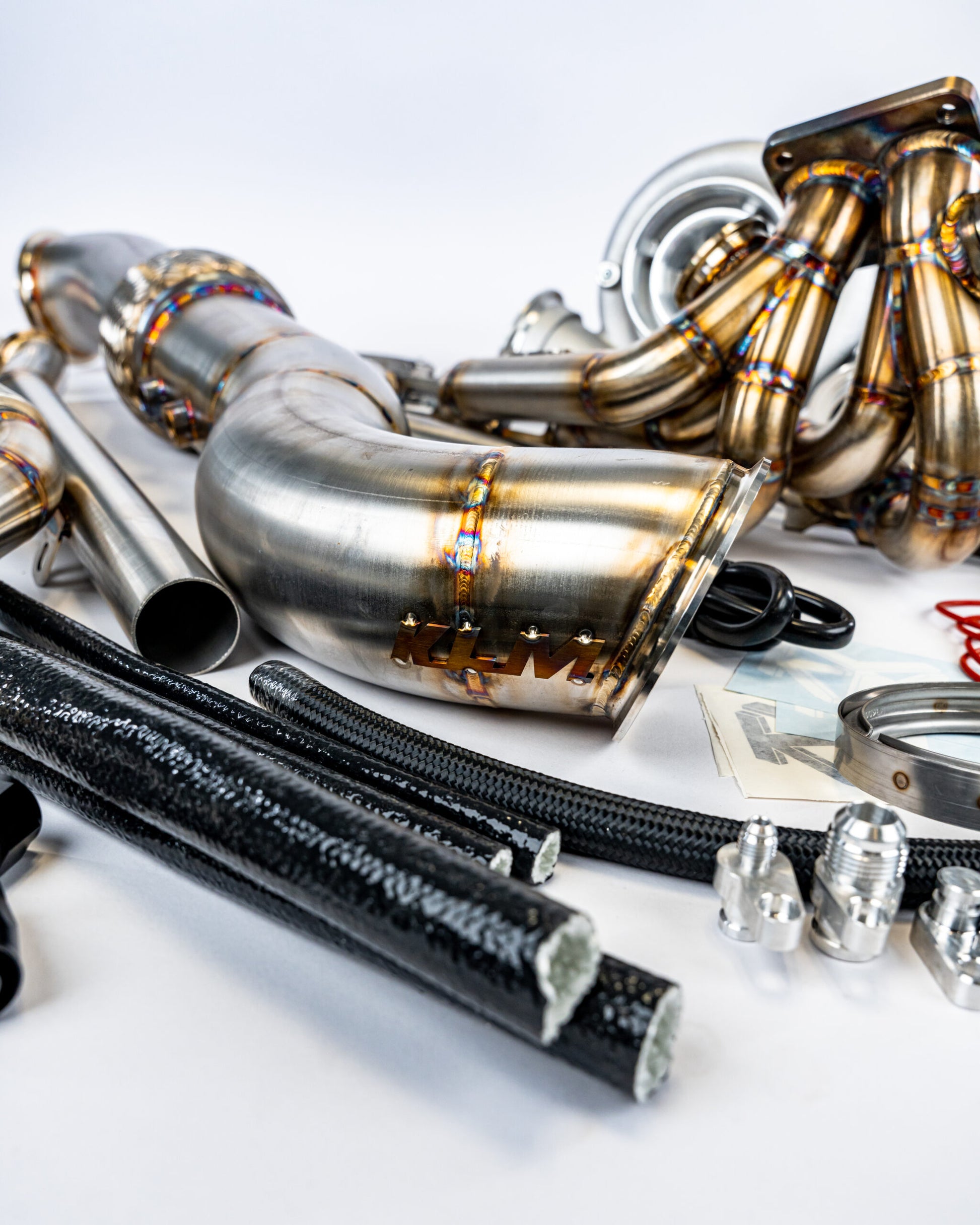

Turbo Kit Already Includes:

1.) Choice Of Turbo
2.) Wastegates TS 45mm
3.) Manifold True Twin Scroll T4 Divided Dual Wastegate

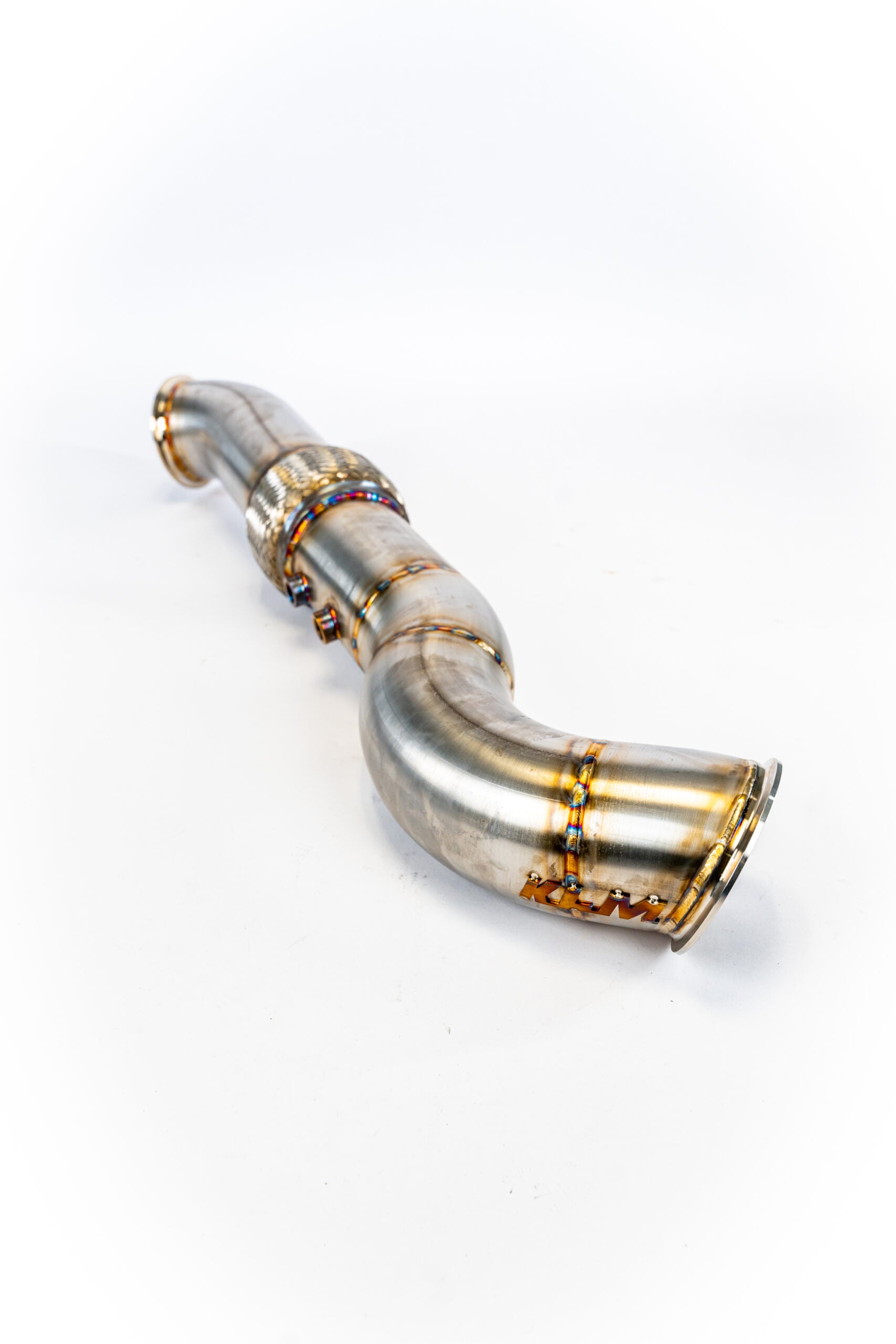

4.) *** 4″ Down Pipe ***
5.) Dump Tubes (X2)
6.) *** Intercooler Piping with 3 Weld Fittings/ 1 BOV Flange w/ V-Band Sportsman Flange ***
7.) 3″ Pro Clamp Full Assembly
8.) *** V-Band Clamp for Intercooler Piping ***
9.) V-Band Clamp for Down Pipe
10.) Turbo Studs & Turbo Gasket (Trimed Studs)
11.) 10AN Nylon Braid Hose (X2 Feet)
12.) 10AN Hose end Fitting 1 X 45Degree
13.) 10 AN Hose end fitting 1 X 90 degree
14.) Stainless Braid Oil feed Line 2 Feet Vibrant
15.) Silicon Vacuum Hose (X 4 Feet)
16.) Heat Shield with M8x16mm (X2)
17.) 4AN to 4AN 90 Degree Oil Feed Fitting
18.) Oil Return Block Fitting 10AN (use factory bolt and O-ring)
19.) Oil Feed Block Fitting 4AN (use factory bolt and O-ring)
20.) Coolant Block Off Front (use factory bolt and O-ring)
21.) Coolant Block Off Back
22.) Turbo Oil Drain Fitting / with Bolts (qty.2)
23.) M6x12mm Bolts for Intercooler Piping (X3) one for map
24.) Heat Tape (20 Inches)
25.) Vacuum T Fittings (X1)
26.) Stickers and Licenses Plate Frame
27.) 1/8″ NPT Plugs (x2)
28.) Turbo drain and feed line heat sleeve
29.) Vacuum line heat sleeve

KLM RACE TURBO KITS ARE MADE TO ORDER. LEAD TIME CAN TAKE ANYWHERE FROM 4-8 WEEKS. THANK YOU FOR YOUR PATIENCE.
