KLM RACE 6 Port Turbo Kit (Mkv Supra)

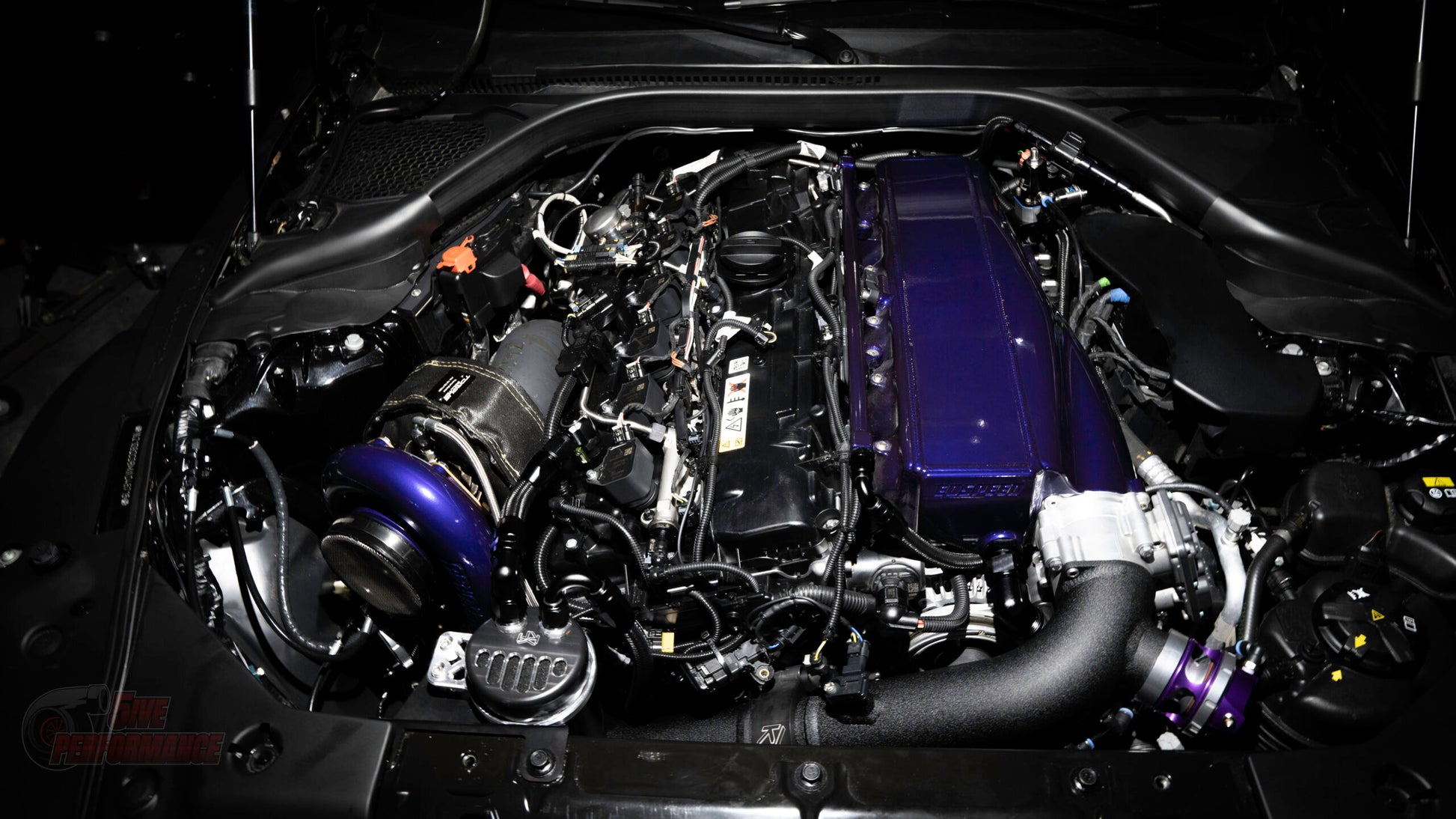

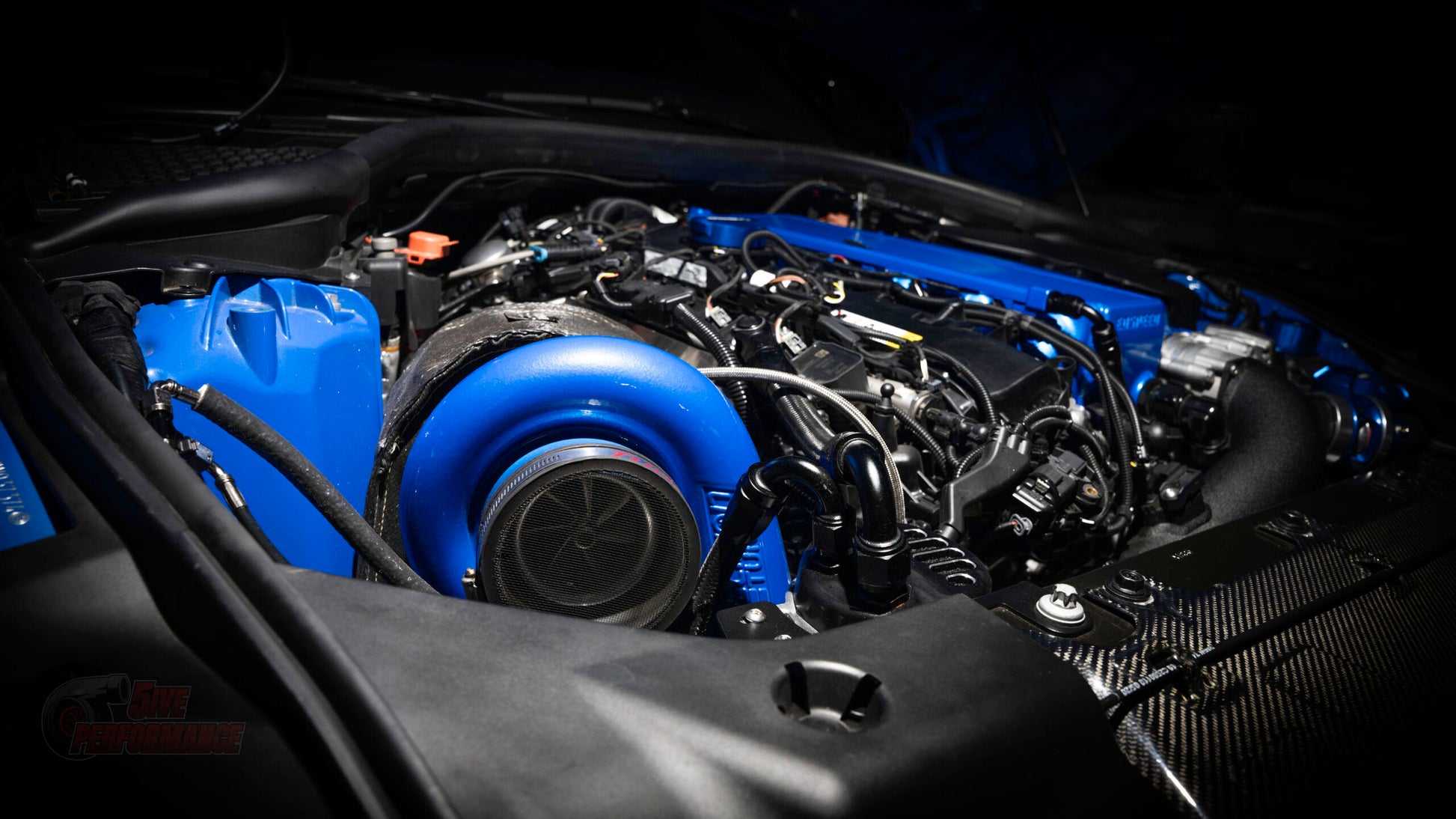

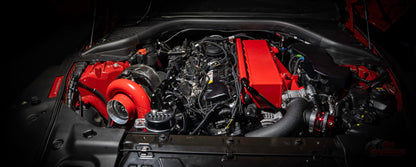

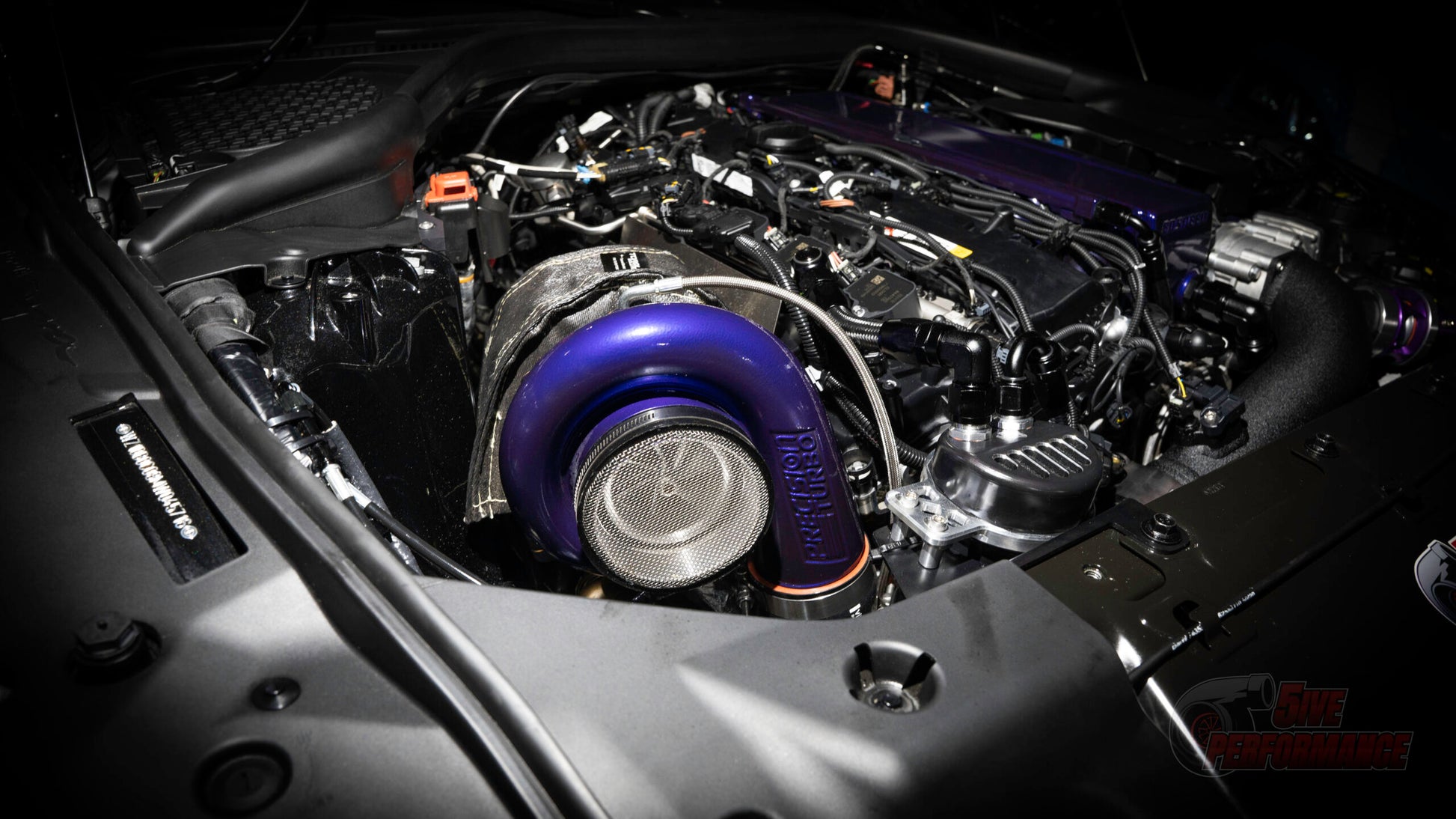

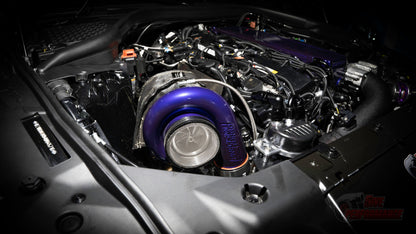

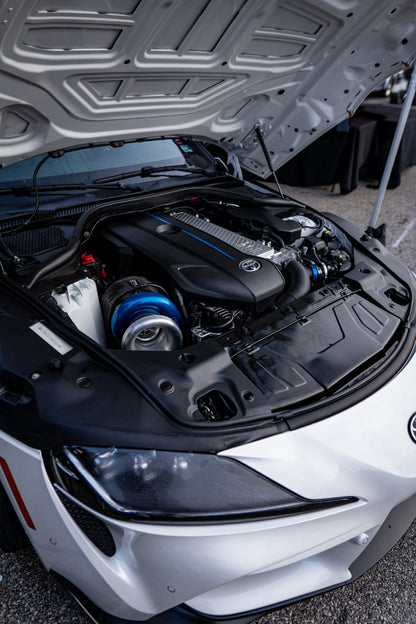

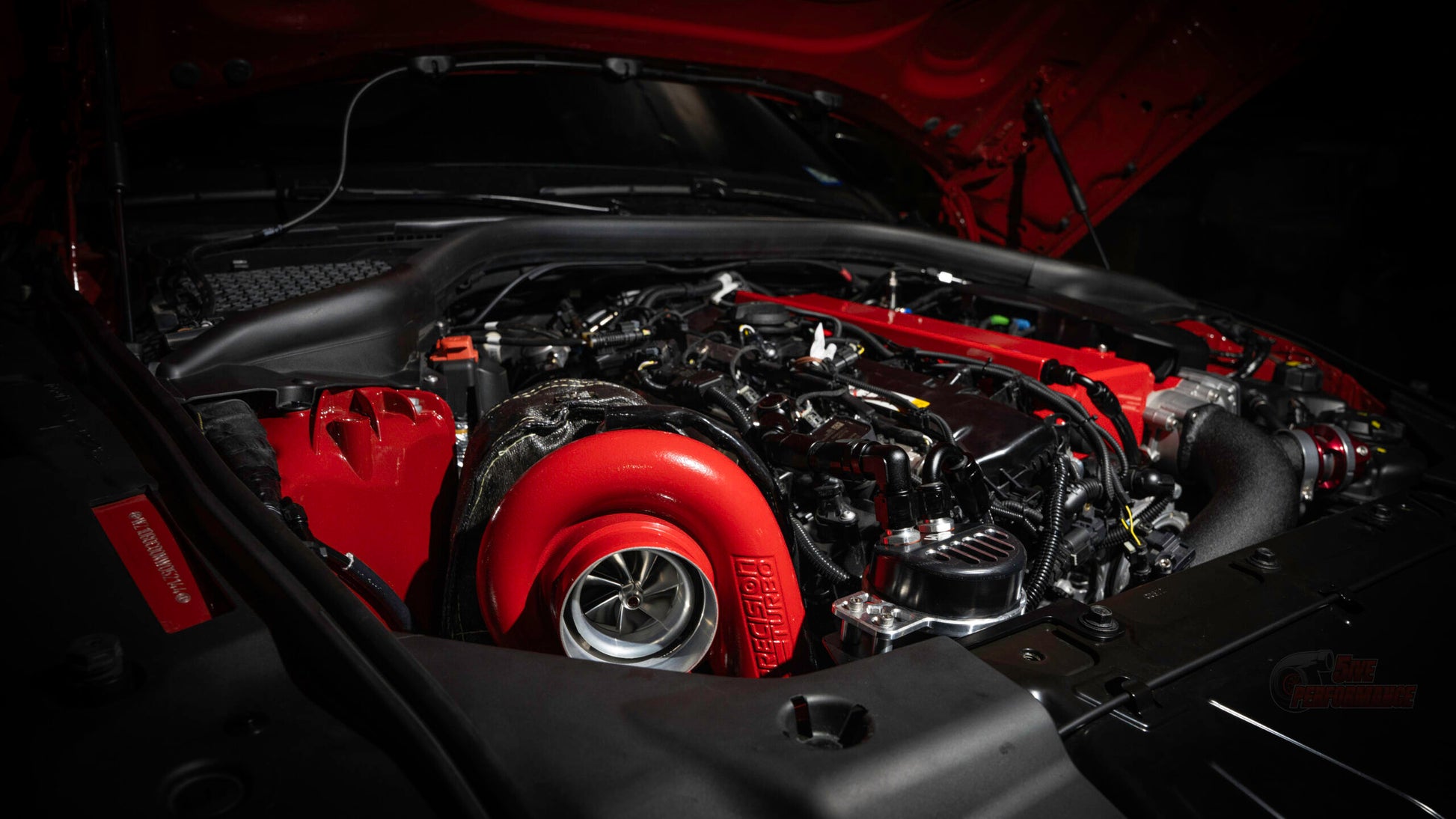

The KLM Race A90/A91 Supra 6-Port Turbo Kit is a complete high-performance turbo system engineered for 2021+ Toyota Supra models equipped with the B58 engine, built specifically for off-road and competition use. Designed to replace the factory turbo setup, the kit features a 6-port twin-scroll turbocharger configuration with dual wastegates for improved exhaust flow, faster spool, and increased power potential. It includes all major components needed for installation—turbocharger, manifold, downpipe, intercooler piping, oil and vacuum lines, hardware, couplers, and fittings—making it a comprehensive solution for enthusiasts looking to push their Supra well beyond stock performance, with optional upgrades available for added durability and heat management.

As of 7/15/24 kits will no longer come with a BOV on the charge pipe and are not required to run this kit properly.

Optional Add On: (ADD TO CART SEPARATELY)

• KLM CATCH CAN KIT
• KLM TURBO BLANKET
• KLM TURBO GUARD

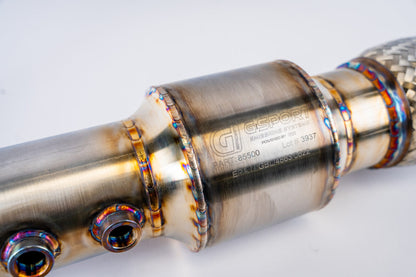

• GESI G-SPORT HIGH FLOW
• T51R MOD

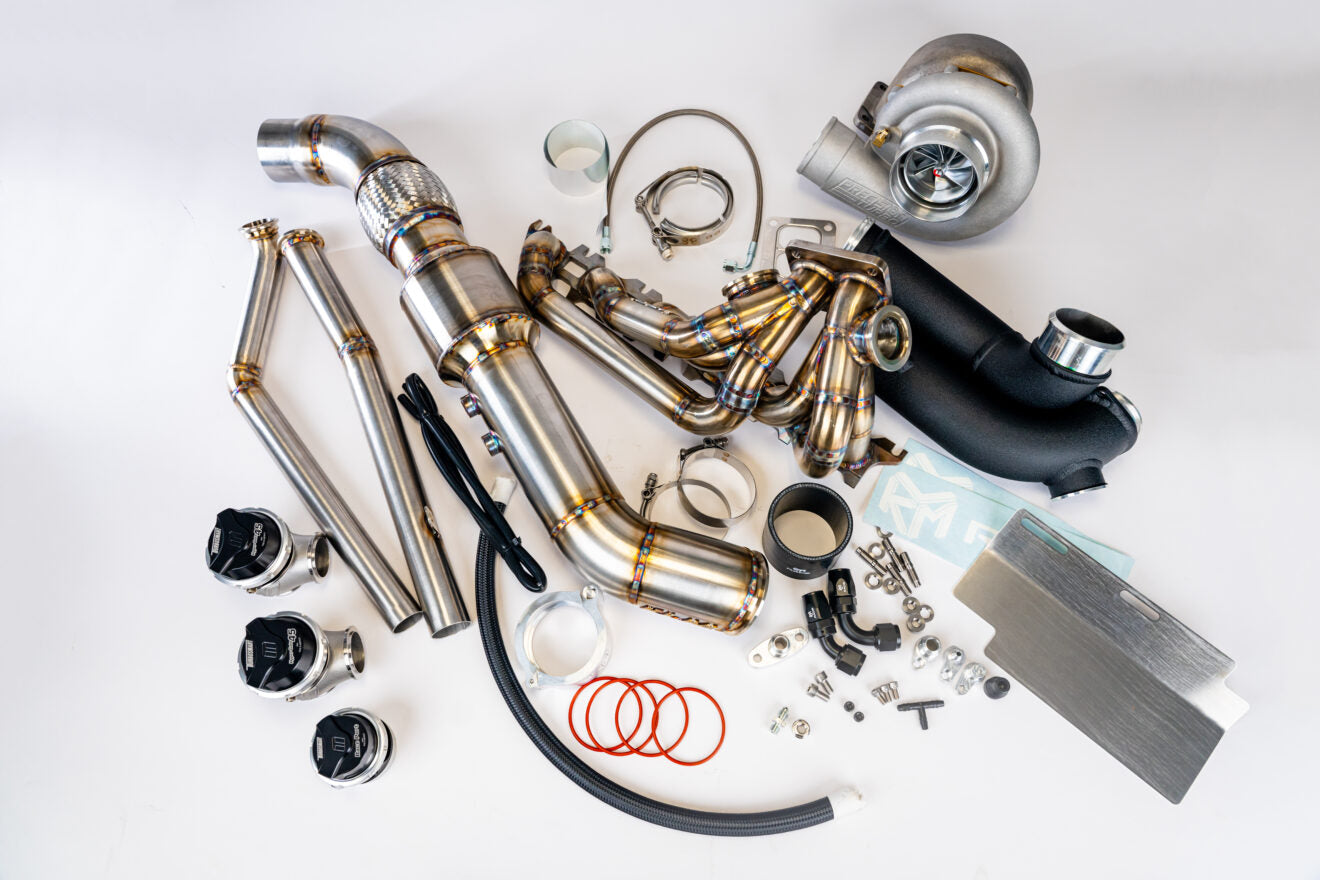

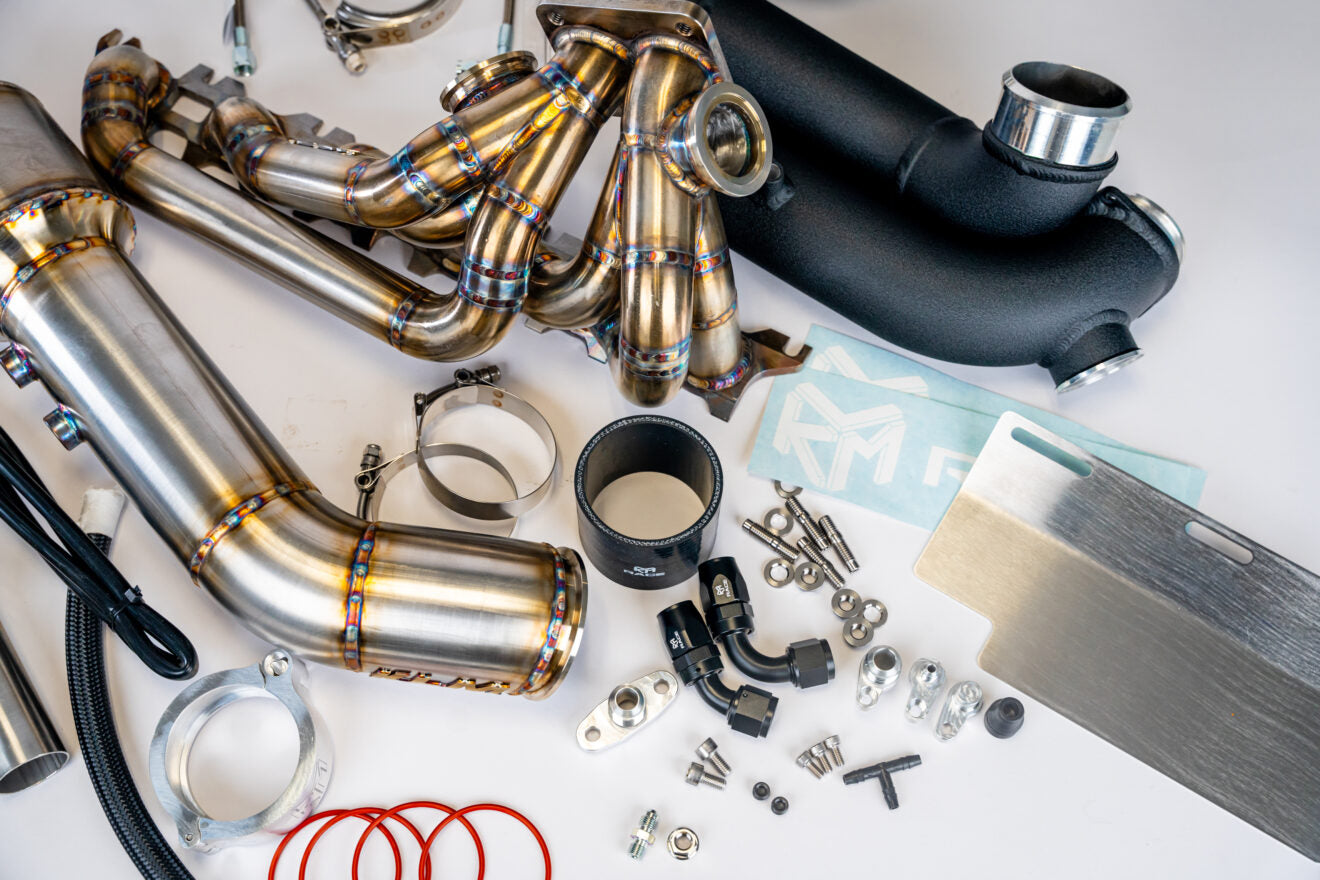

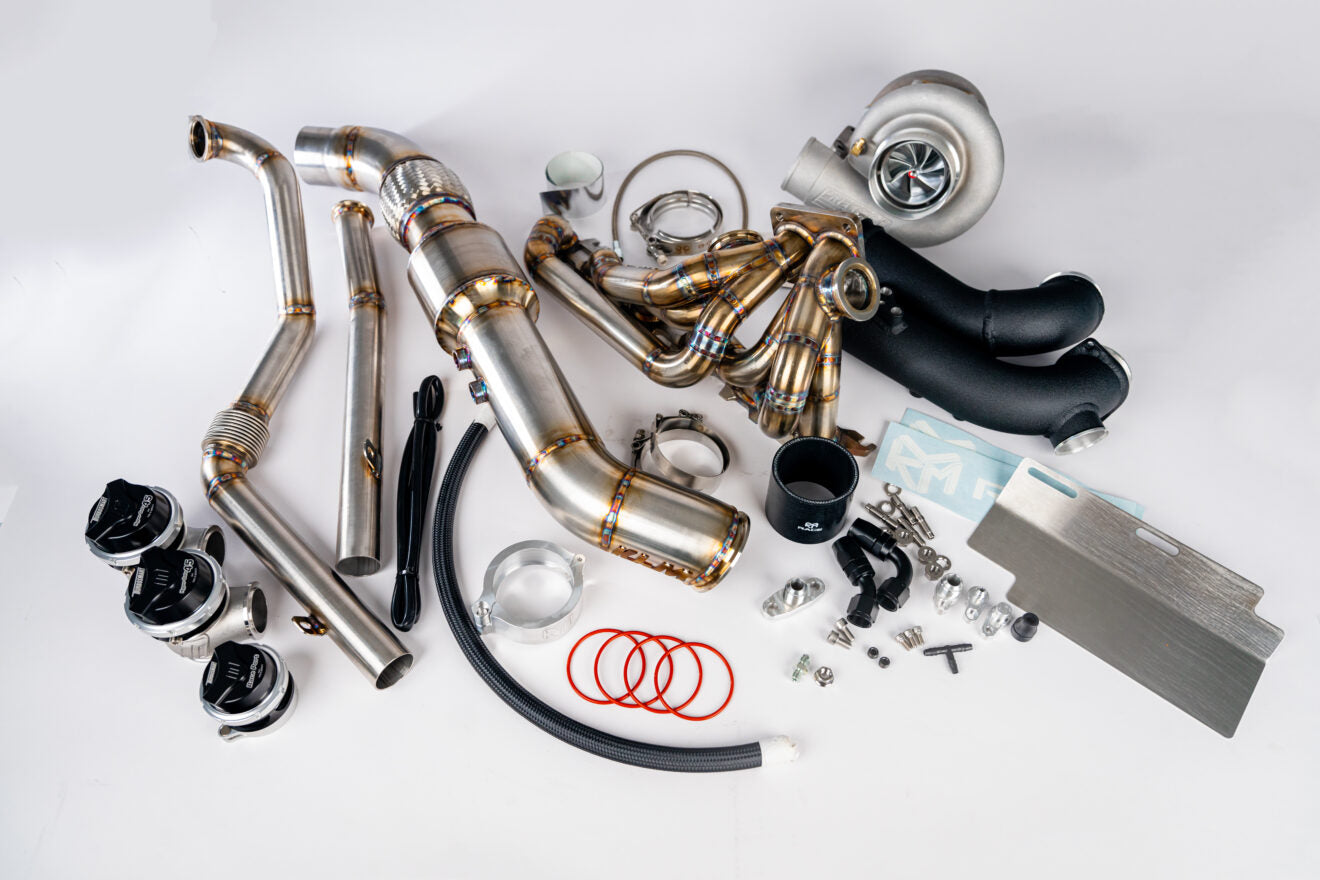

Turbo Kit Already Includes:

1.) Choice Of Turbo
2.) Wastegates  TS 45mm
3.) Coupler [3″] OR [2.5-3″]
4.) Hose clamps [(2)X3″] OR [(1)X2.5″/(1) X3″]
5.) Manifold True Twin Scroll T4 Divided Dual Wastegate

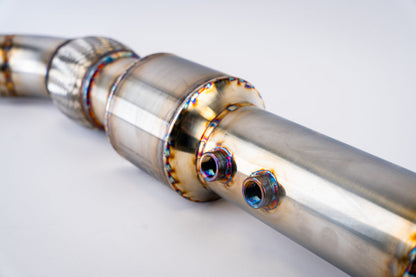

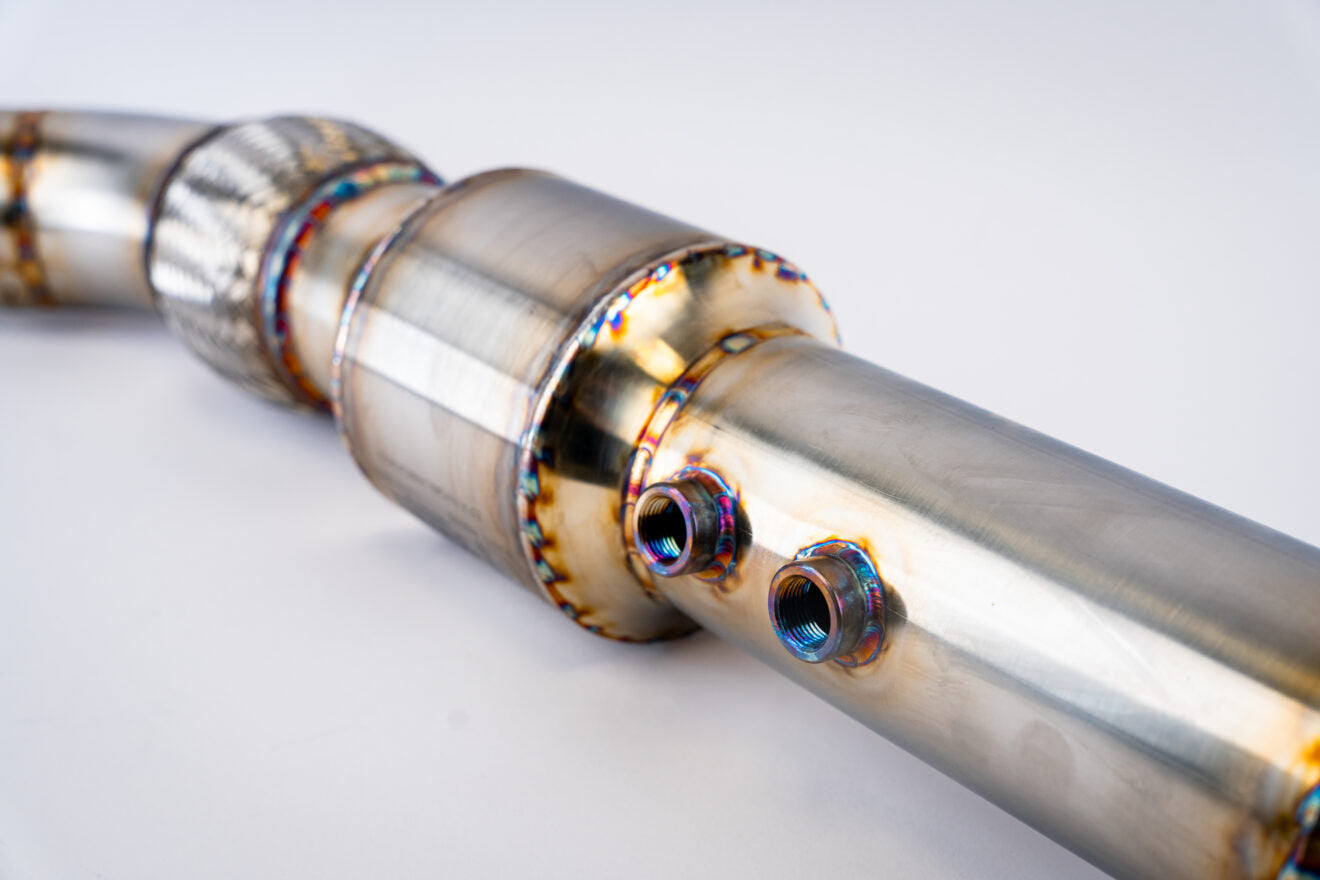

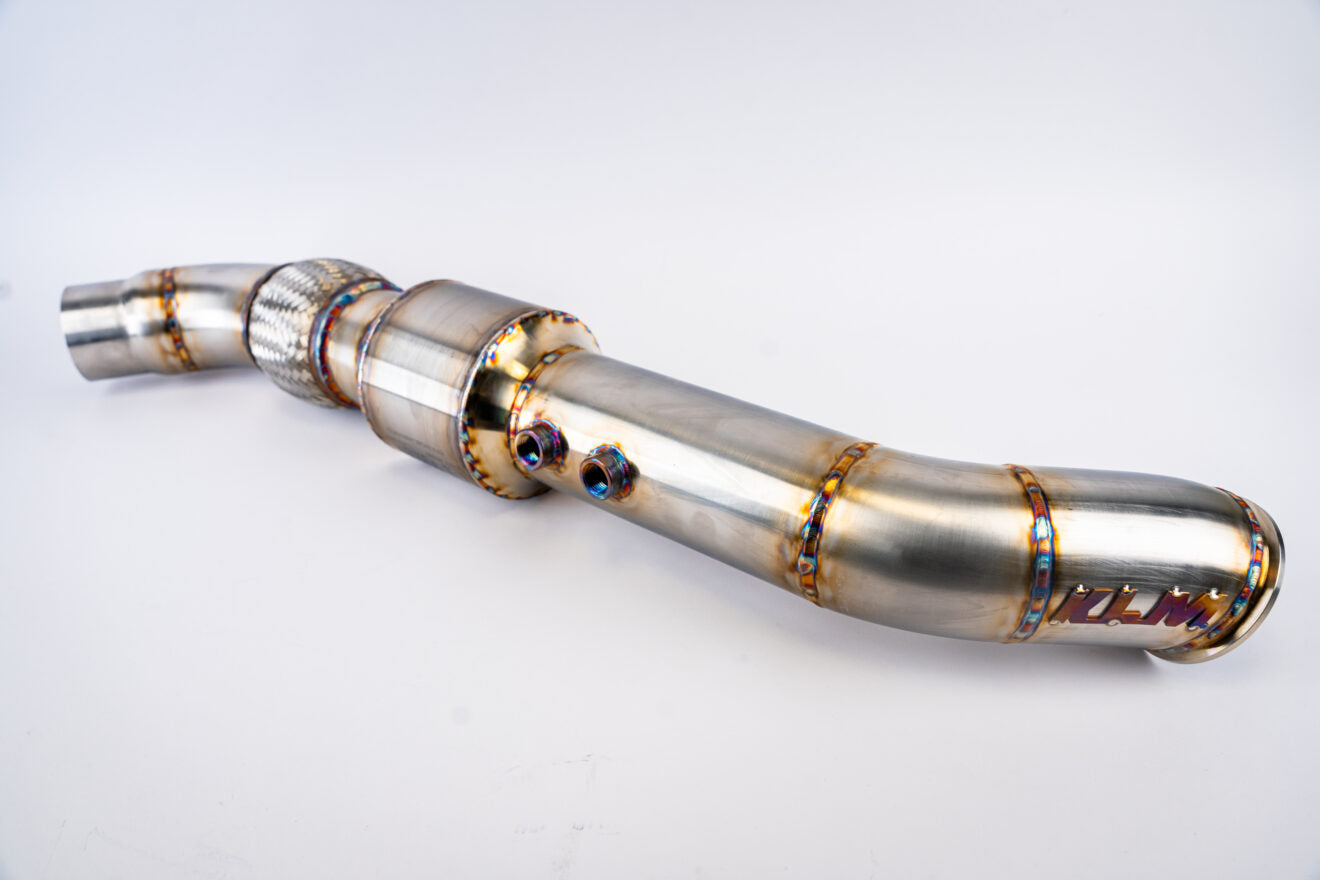

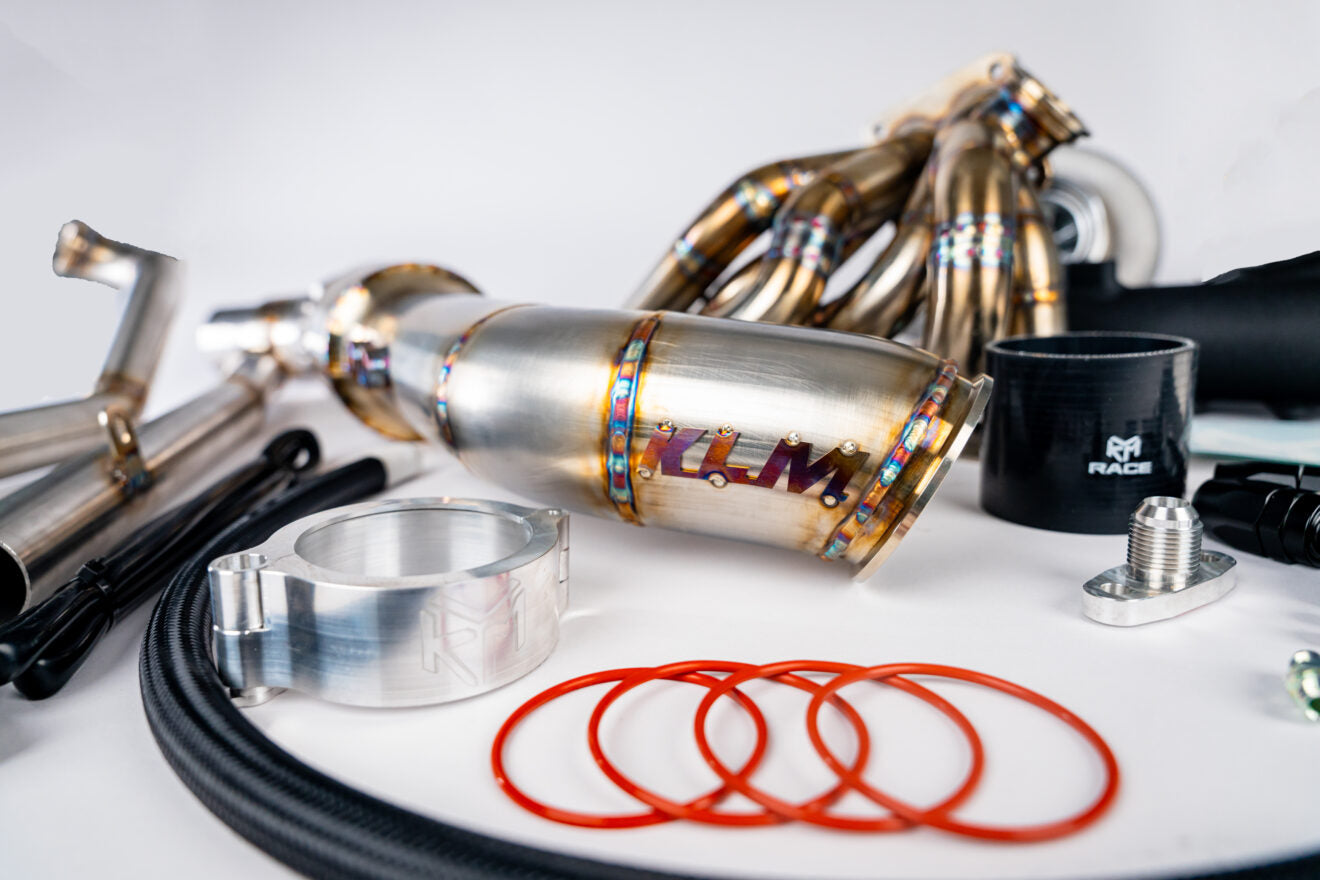

6.) 3.5″ Down Pipe
7.) Dump Tubes (X2)

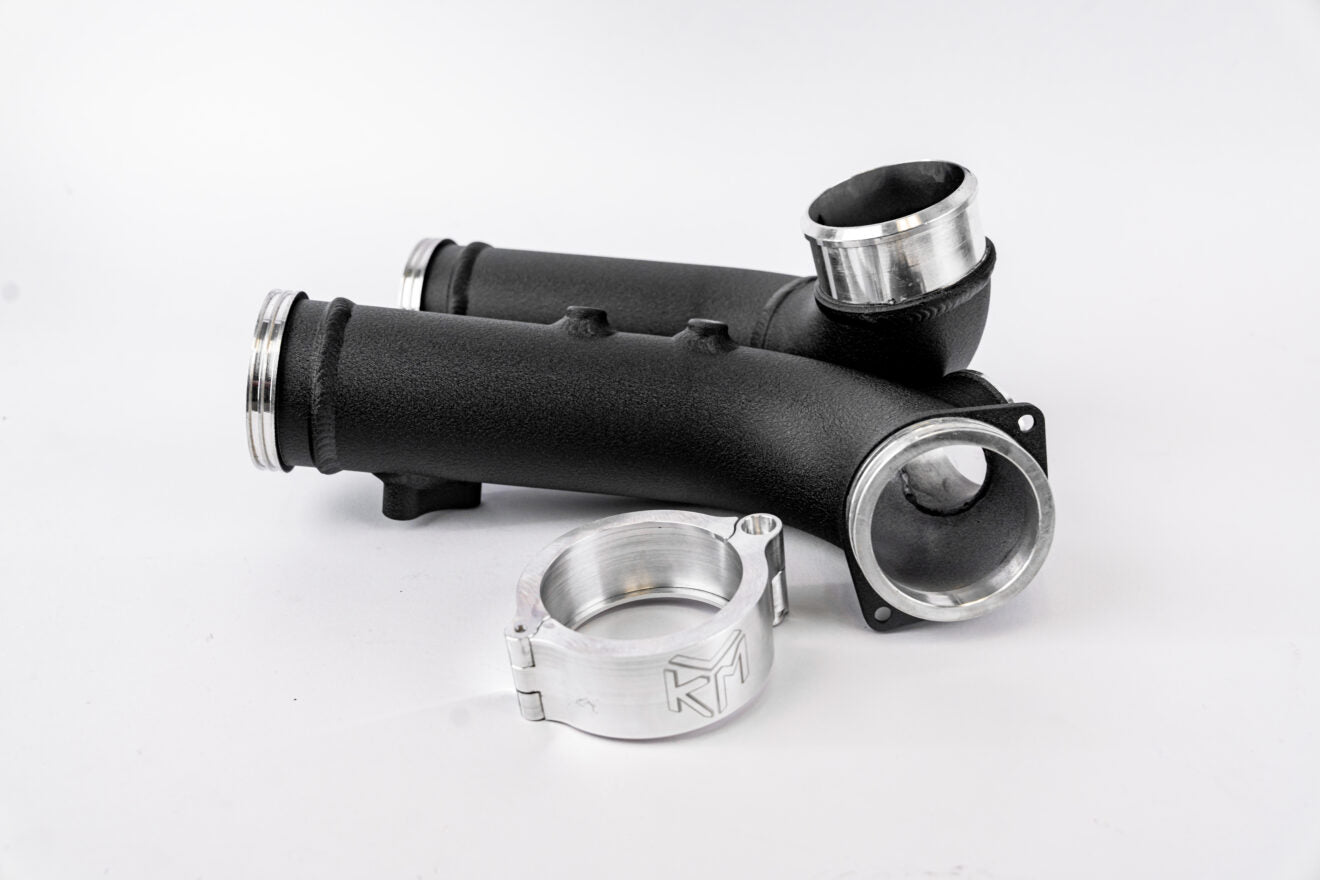

8.) Intercooler Piping with 3 Weld Fittings
9.) 3″ Pro Clamp Full Assembly
10.) Vband Clamp for Down Pipe
11.) Turbo Studs & Turbo Gasket (Trimed Studs)
12.) 10AN Nylon Braid Hose (X2 Feet)

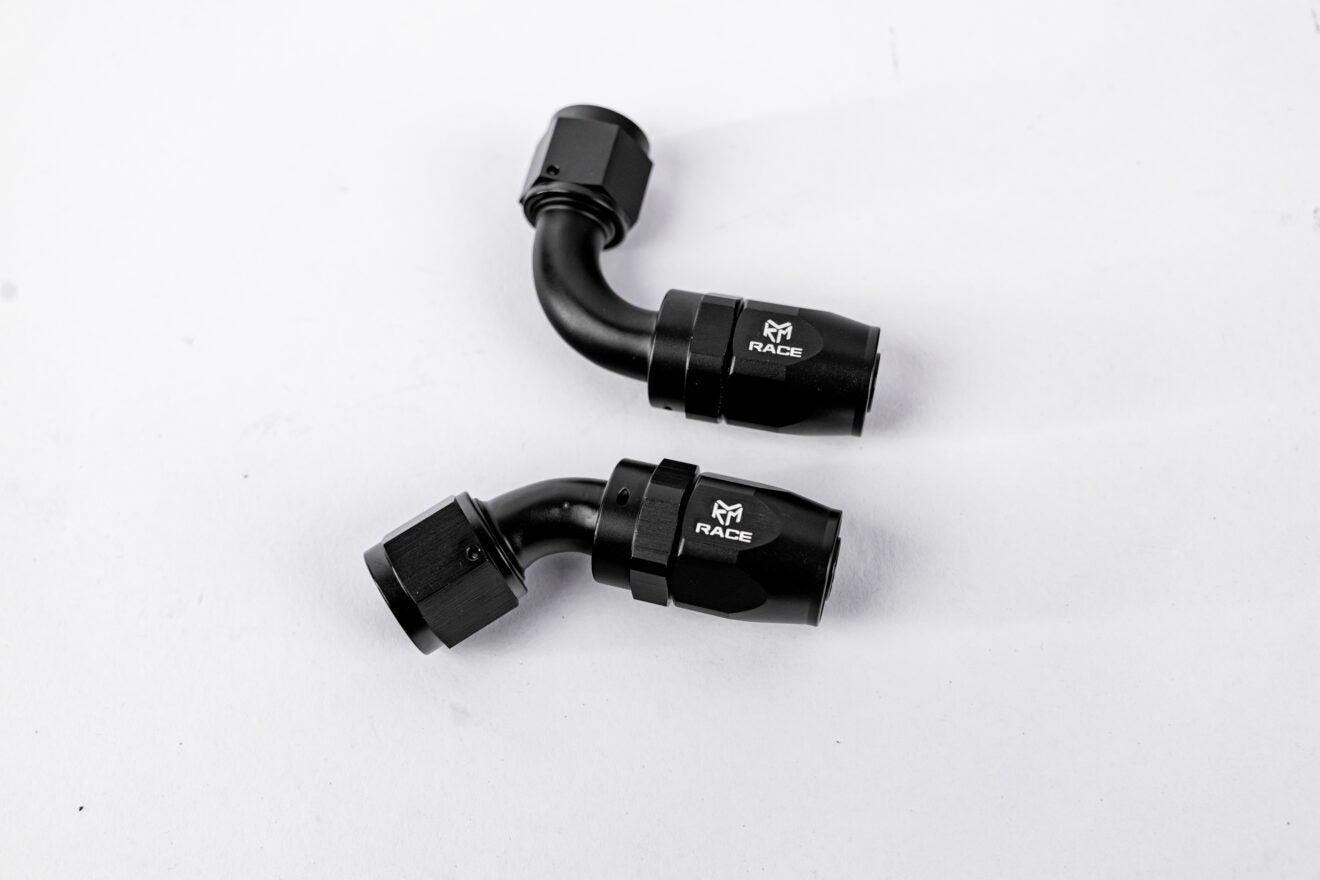

13.) 10AN Hose end Fitting 1 X 45Degree
14.) 10 AN Hose end fitting 1 X 90 degree
15.) Stainless Braid Oil feed Line 2 Feet Vibrant
16.) Silicon Vacuum Hose (X 4 Feet)
17.) Heat Shield with M8x16mm (X2)
18.) 4AN to 4AN 90 Degree Oil Feed Fitting
19.) Oil Return Block Fitting 10AN (use factory bolt and O-ring)
20.) Oil Feed Block Fitting 4AN (use factory bolt and O-ring)
21.) Coolant Block Off Front (use factory bolt and O-ring)
22.) Coolant Block Off Back
23.) Turbo Oil Drain Fitting / with Bolts (qty.2)
24.) M6x12mm Bolts for Intercooler Piping (X3) one for map
25.) Heat Tape (20 Inches)
26.) Vacuum T Fittings (X1)
27.) Stickers and Licenses Plate Frame
28.) 1/8″ NPT Plugs (x2)
29.) Turbo drain and feed line heat sleeve
30.) Vacuum line heat sleeve

KLM RACE TURBO KITS ARE MADE TO ORDER. LEAD TIME CAN TAKE ANYWHERE FROM 4-8 WEEKS. THANK YOU FOR YOUR PATIENCE.
