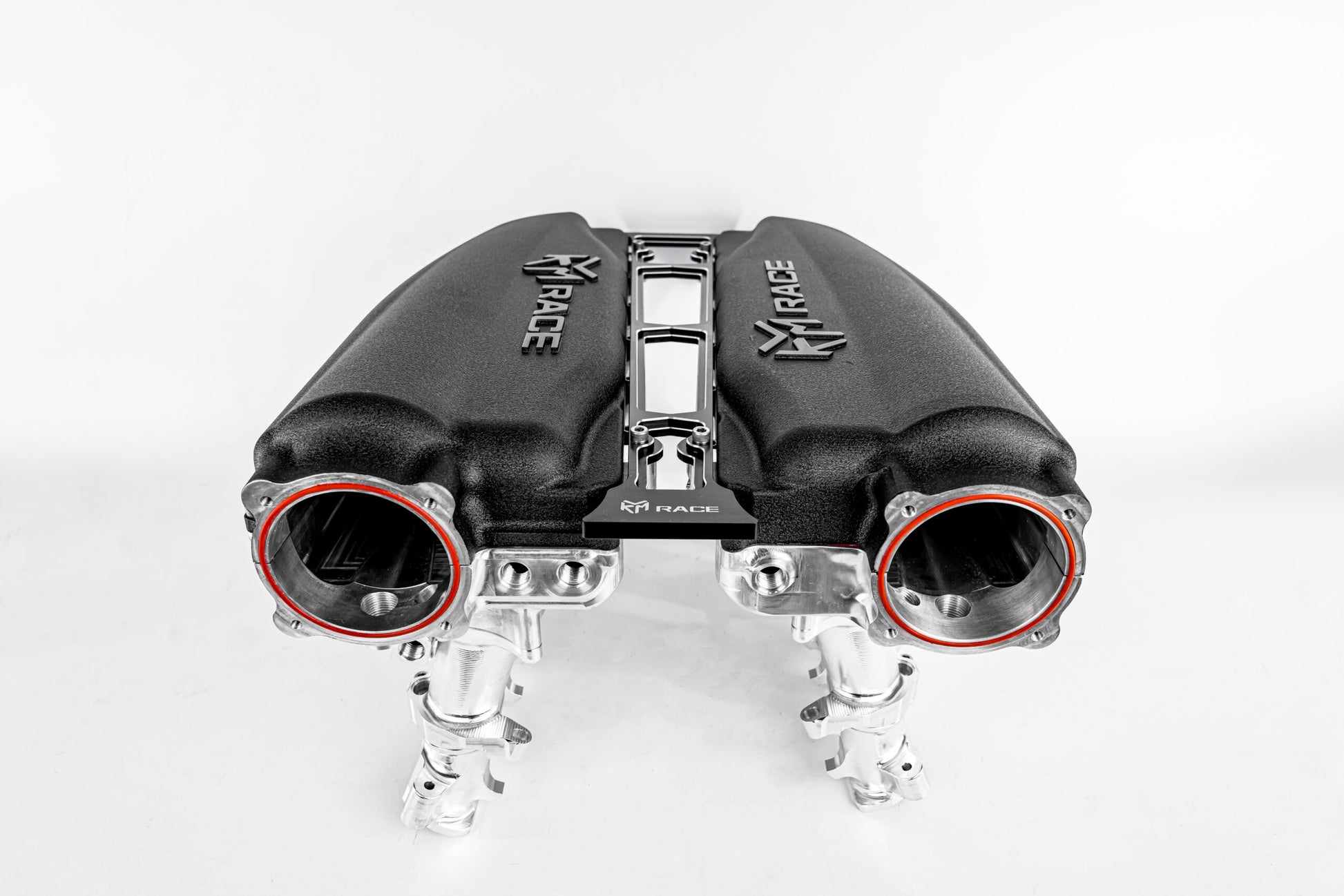

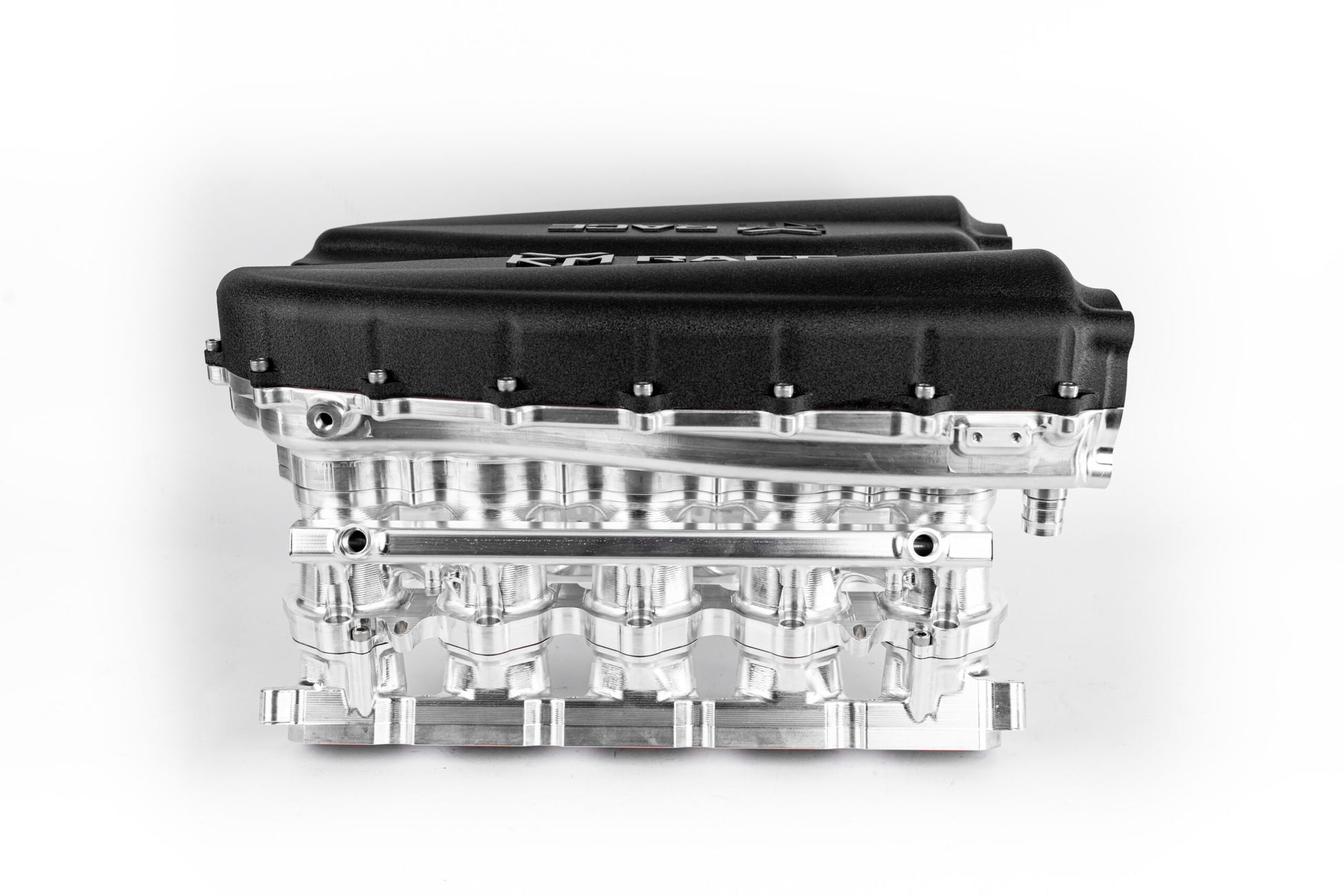

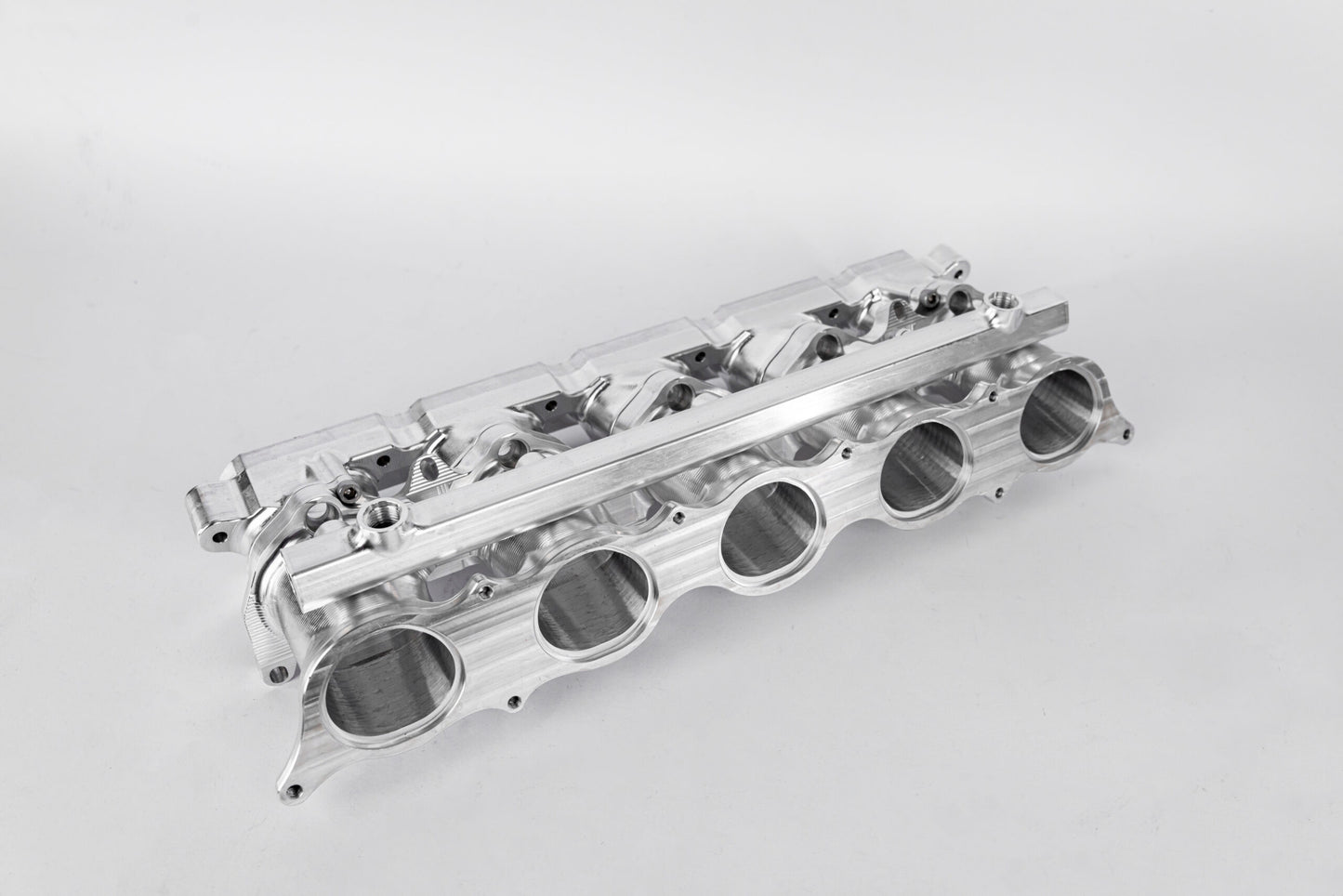

KLM RACE R8 / HURACAN BILLET INTAKE MANIFOLD

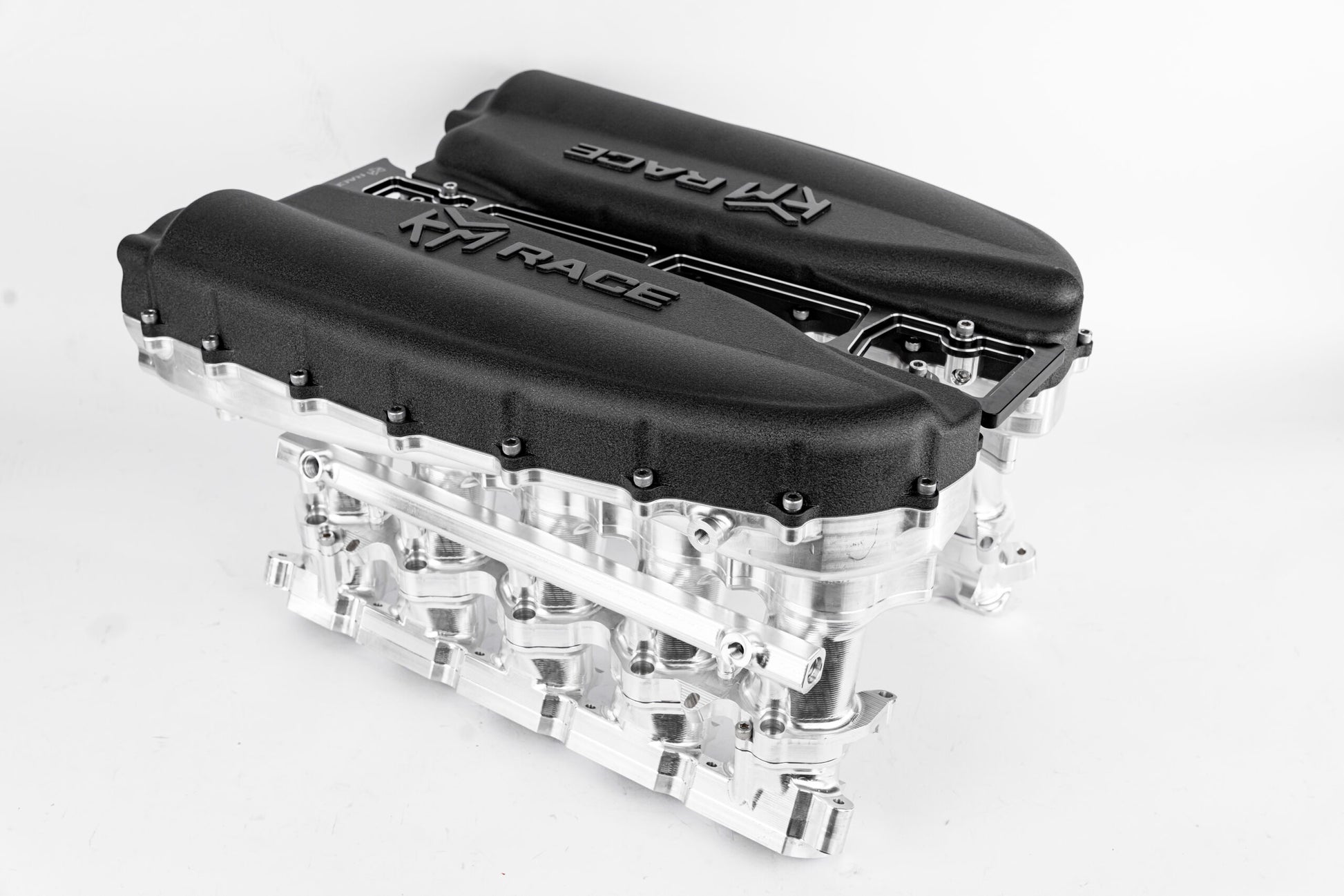

KLM Audi R8 / Lamborghini Huracan Billet Intake Manifold

Intake Manifold Includes:

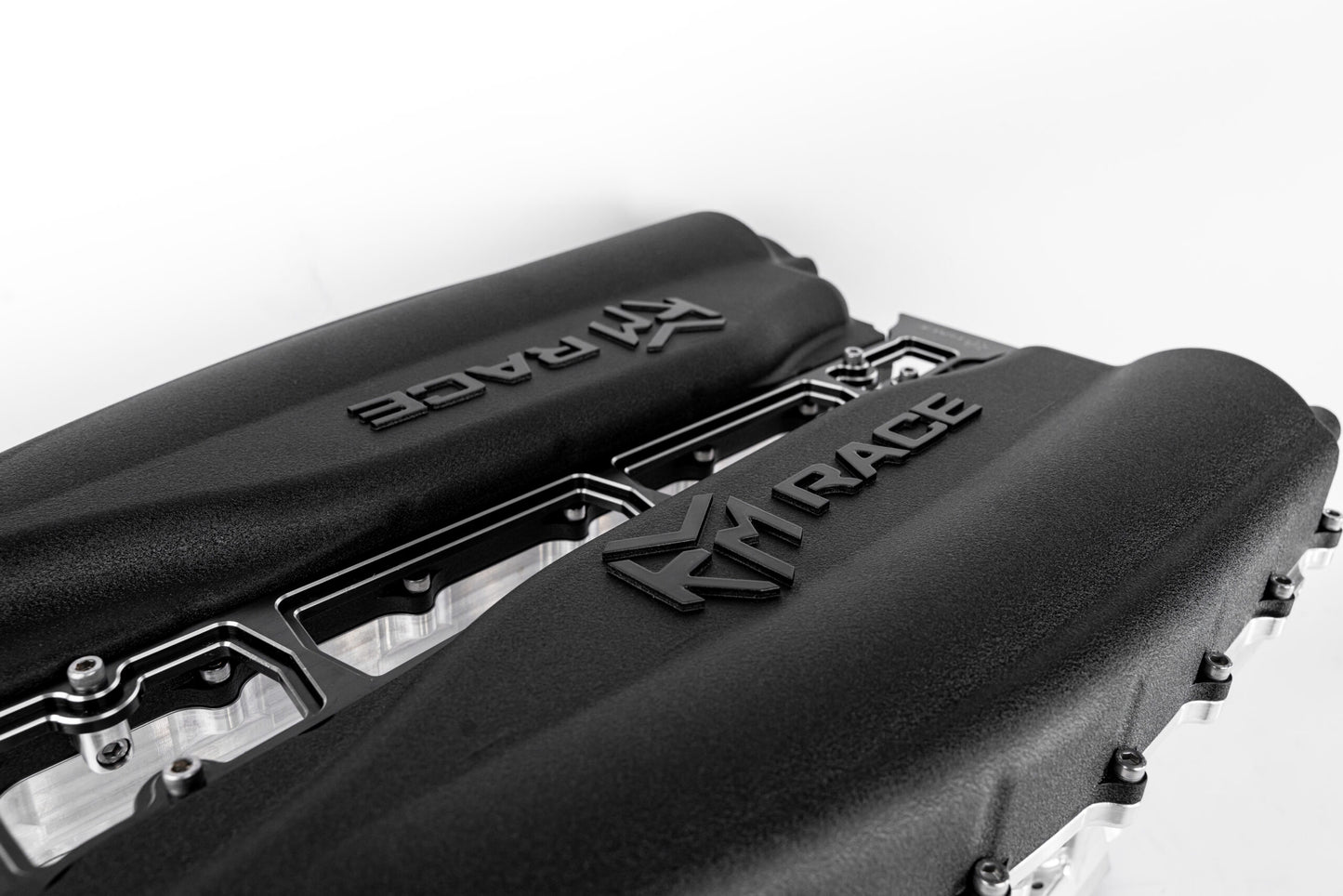

• Billet Upper Plenum Lid (Driver side)
• Billet Lower Plenum (Driver Side)
• Billet Upper Plenum Lid (Passenger Side)
• Billet Lower Plenum (Passenger Side)

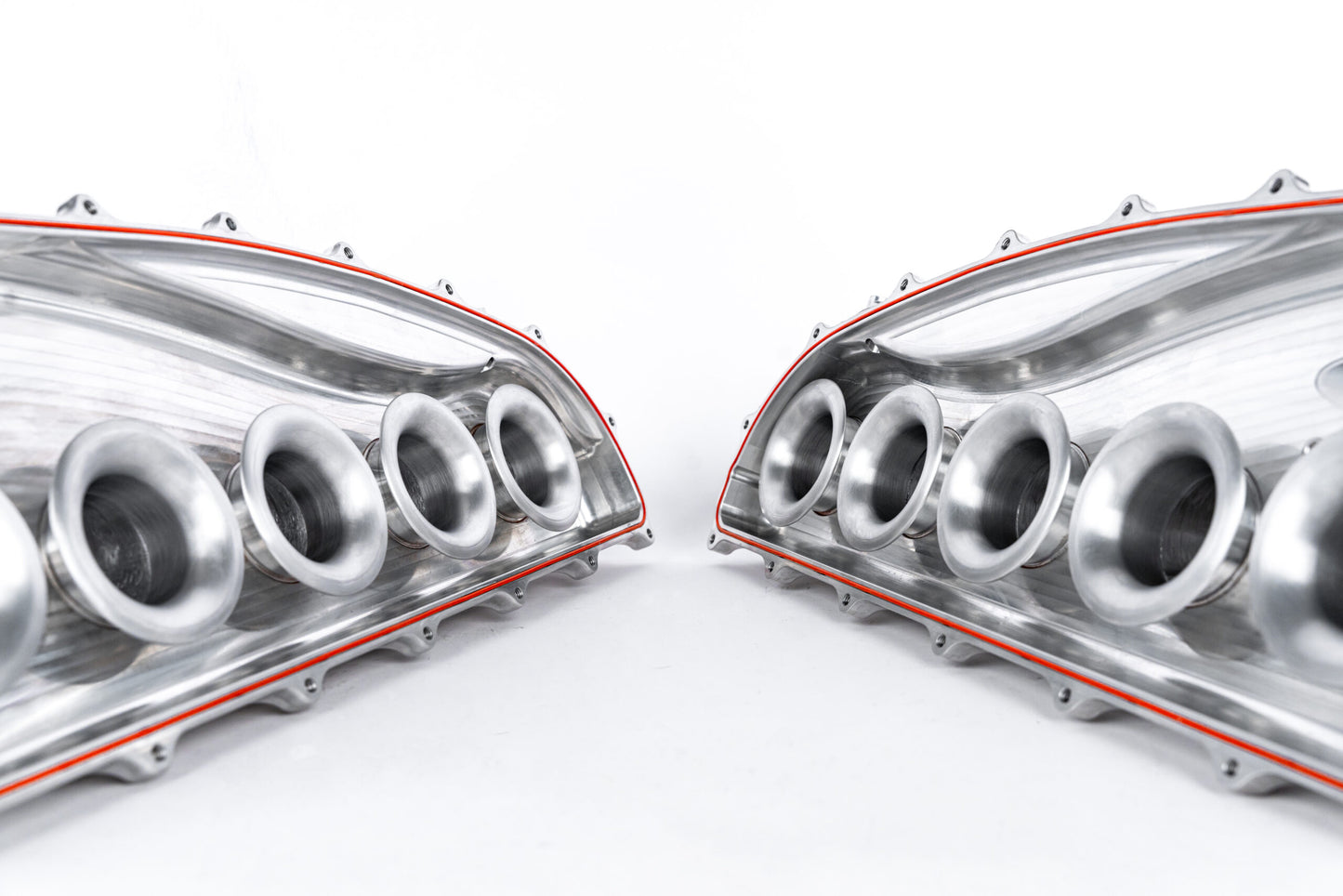

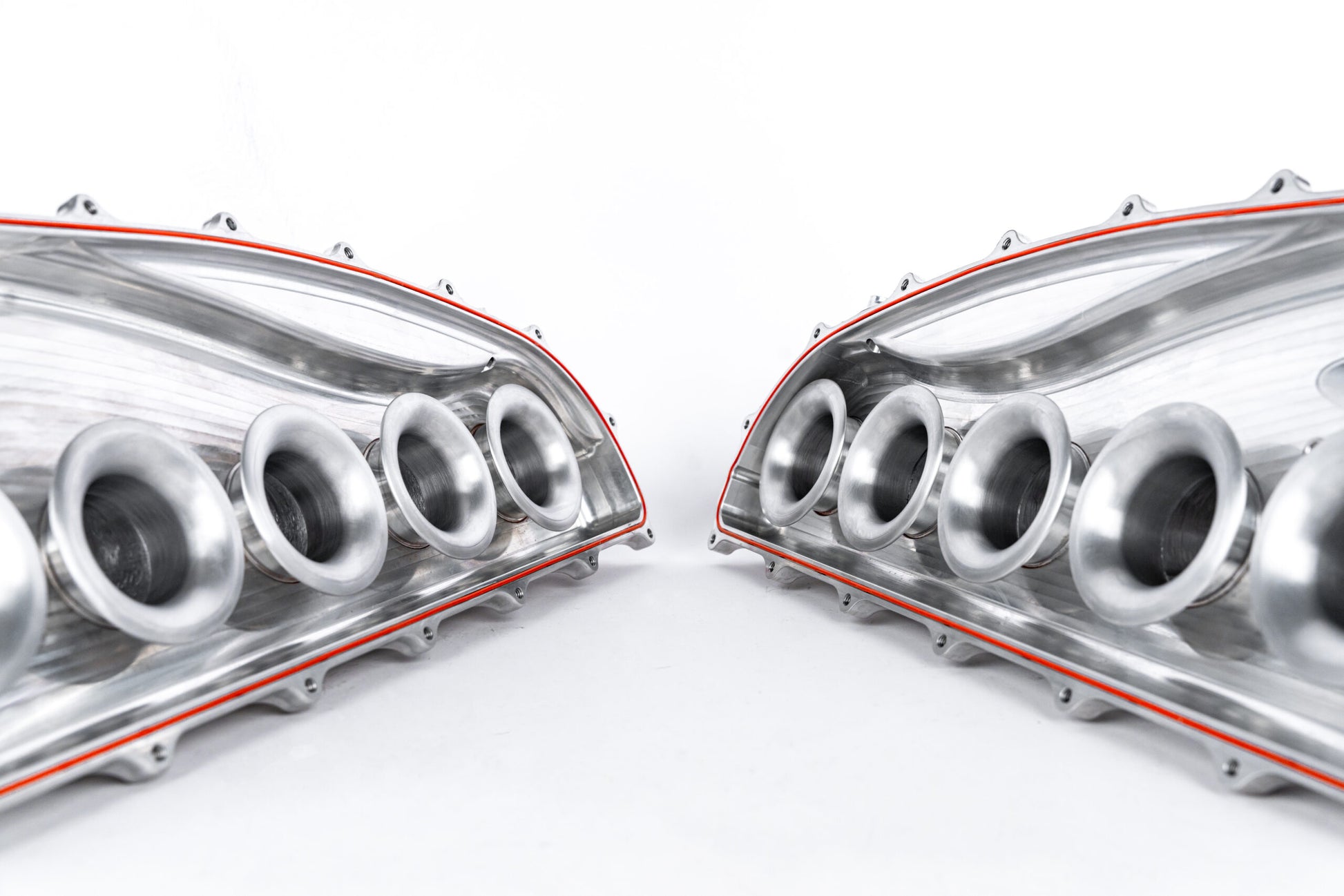

• Billet Velocity Stacks
• Direct Injector Runner
• Port Injector Runner
• Billet OEM Barb w/ O-Ring
• Billet Plate Bracket
• Billet Center Plate
• Fuel Rails

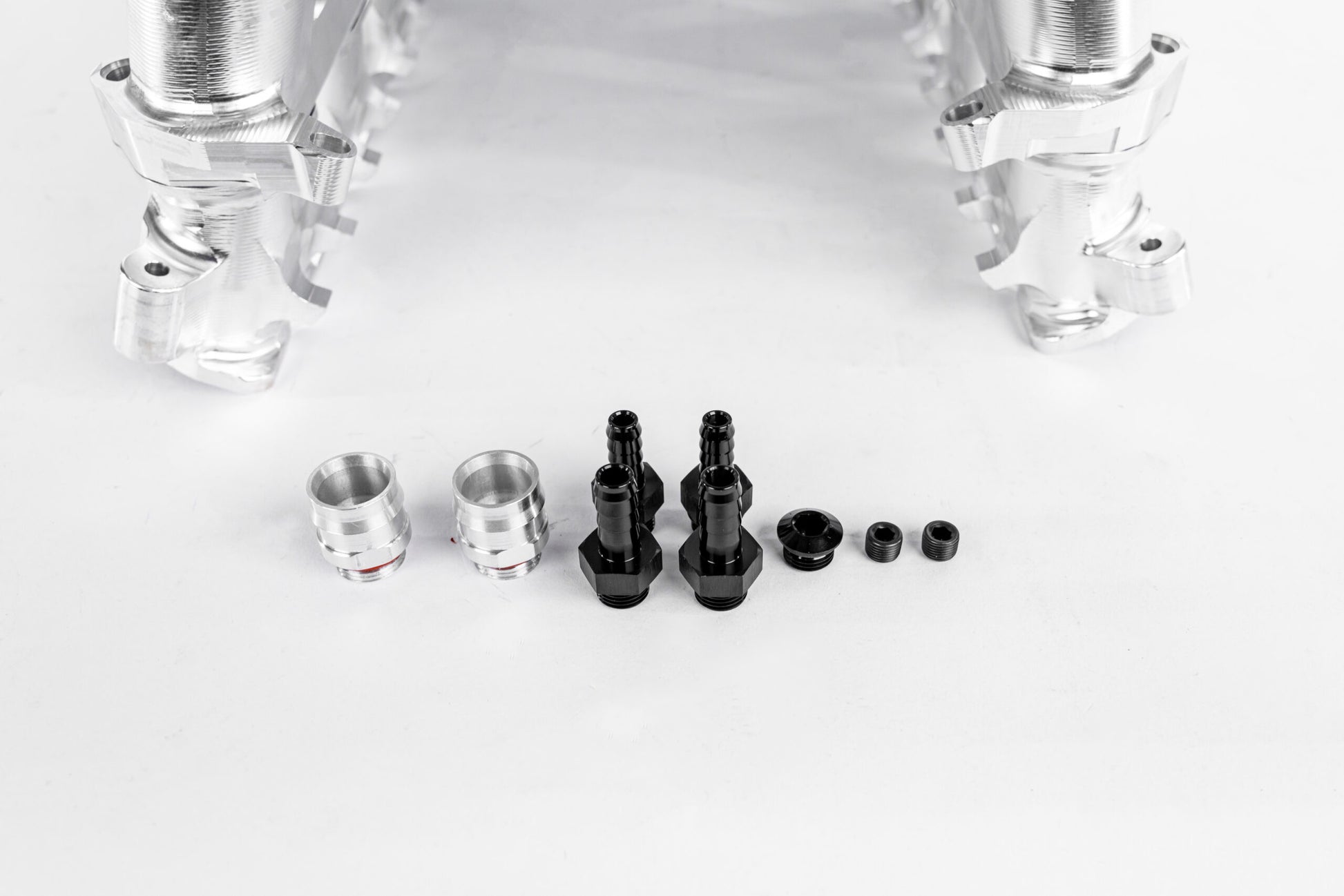

• 6AN ORB to 3/8 Barb
• 6AN ORB to 5/15 Barb
• 6AN ORB Block Off
• 1/8 NPT Block Off

O-RINGS:

• 58mmx2 O-Ring
• 1/16 Silicone O-Ring Cord (8ft)
• 3 Inch O-Ring

BOLTS:

• M6x12mm – (to bolt lids together)
• M6x12mm – (to bolt center plate mounting tabs)
• M6x12mm – (to bolt fuel rails)
• M6x20mm – (to bolt lower and upper runners together)
• M6x20mm – (to bolt center plate to mounting tabs)
• M6x40mm – (to bolt lower intake plenum to upper runners)

KLM RACE PRODUCTS ARE MADE TO ORDER. LEAD TIME CAN TAKE ANYWHERE FROM 4-8 WEEKS. THANK YOU FOR YOUR PATIENCE.
