NITRON Toyota Supra Mk5 (A90) (19-) R3 Suspension Kit

All Nitron shocks are hand made to order to each individual customer's requirements. Lead times are normally 2-3 weeks, but at certain times may be slightly longer. If you would like a more accurate delivery time please contact us

Shock Set Up:

Road:

• Softer spring rates and damping.
• Designed for street comfort with improved handling.
• Still capable of spirited driving.
• Daily driving, canyon runs, occasional track day.
• Mostly street

Track:

• Stiffer springs and more aggressive damping.
• Better control under heavy braking, cornering, and high-grip tires.
• Ride becomes noticeably firmer on normal roads.
• Cars that are driven to the track but primarily used for track days.
• Street + track days

Race:

• Dedicated race car
• Very stiff springs and race-spec valving.
• Designed for slick tires, aero, and high-speed circuit racing.
• Usually harsh and impractical for street driving.
• Dedicated race cars or serious time-attack builds.

The Nitron R3 system sets the standard for ultimate performance with a design that offers drivers and engineers unparalleled damping control.

3-Way independent damping adjustment. By incorporating our class leading large diameter piston and ultra-strong piston rod, the R3 system demonstrates outstanding levels of performance, damping control and adjustment. Piggyback or remotely mounted reservoir allows quick and simple independent adjustment of rebound and fast and slow compression damping. The large range of adjustment and quality of feedback allows the experienced driver to fully exploit the full potential of their car. The R3 is a proven race winner and lap record holder across a wide spectrum of international motorsport formulas.

The high-grade materials protect against corrosion whilst reducing weight. Every R3 kit is custom built, sprung and fully serviceable. Titanium and hard-anodised parts are hand built to last not only the lengthiest endurance races, season after season, but also the harshest of winters.

Nitron Hose shocks are fitted with Bi-Axis hose fittings that allow for simple and precise installation. Exclusively developed by Nitron.

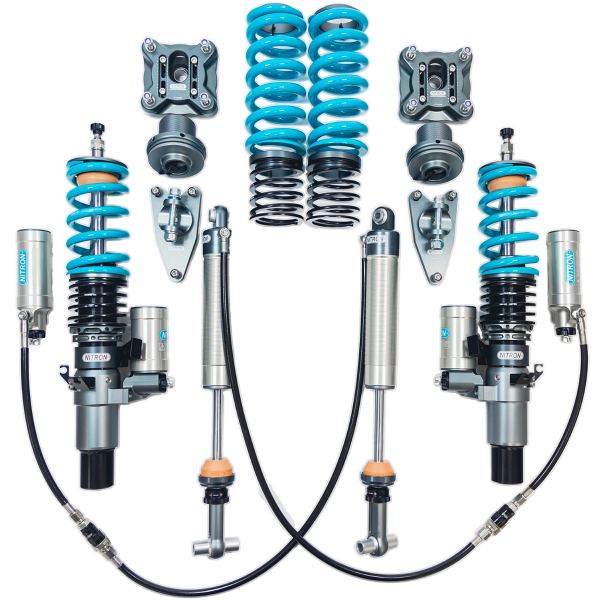

Note: Image used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown
